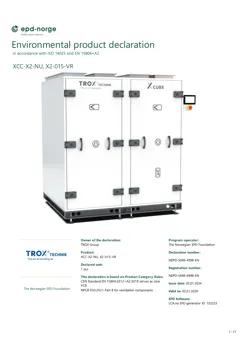

EPD: Air handling unit (AHU), 776x1543x1638 mm, 100 m3/h, 359.26 kg/unit (TROX Group)
TROX X-CUBE X2 Compact Unit Air handling unit (AHU) with a plug&play compact design for conditioning and process air. Energy label certification according to the AHU Directive 01 and Eurovent. AHUs can be customized to meet the needs of different applications. Due to the small size and the variable versions with vertical or horizontal duct connection, installation is possible in the smallest of spaces. The slim units fit largely through standard doors and are easy to transport. With the help of the rotary heat exchanger, the product achieves particular efficiency. The units are supplied ready for connection and can be configured and commissioned via X-CUBE control. Product specification XCC-X2-NU, X2-015-VR Vertical compact unit with heat recovery wheel, integrated heater, ODA/ETH filter, EC-fans, outside ODA/EHH damper. Factory mounted control components complete with wiring and tubing. Housing with double-walled sandwich panels made of galv. sheet metal, dimensionally stabilised and inlay-reinforced, as well as being powder-coated as described. This EPD deals with a special configuration of an AHU. It includes the environmental data of the product series XCC-X2NU. Due to the possibility of customised configuration, other variants may have different material compositions and a different total weight. The following represents a representative dataset of the most sold variant in the declared sales year (X2-015-VR). Materials kg % Adhesive and sealant 5,30 1,47 Electronic - Cable 0,88 0,24 Electronic - Sensor 0,96 0,27 Electronic - Switch 0,24 0,07 Electronic - Unspecified 27,00 7,52 Extruded Polystyrene (XPS) 0,43 0,12 Filter, mineral based 0,87 0,24 Insulation, Mineral based 10,09 2,81 Metal - Aluminium 26,92 7,49 Metal - Brass 0,71 0,20 Metal - Copper 3,20 0,89 Metal - Galvanized Steel 254,87 70,94 Metal - Stainless steel 7,05 1,96 Metal - Steel 0,86 0,24 Motor 1,18 0,33 Plastic - Acrylonitrile butadiene styrene (ABS) 2,50 0,70 Plastic - Nylon (PA) 0,19 0,05 Plastic - Polyamide 0,10 0,03 Plastic - Polycarbonate (PC) 0,18 0,05 Plastic - Polyoxymethylene (POM) 0,01 0,00 Plastic - Polypropylene (PP) 0,07 0,02 Plastic - Polystyrene (PS) 0,73 0,20 Plastic - Polyurethane (PUR) 0,82 0,23 Plastic - Polyvinyl chloride (PVC) 0,21 0,06 Powder coating 11,83 3,29 Product label - supercalendered 0,01 0,00 Rubber, natural (Latex) 0,02 0,01 Rubber, synthetic 2,01 0,56 Textile - Cotton 0,02 0,01 Total 359,26 Packaging kg % Packaging - Pallet 30,00 90,91 Packaging - Plastic 3,00 9,09 Total incl. packaging 392,26
