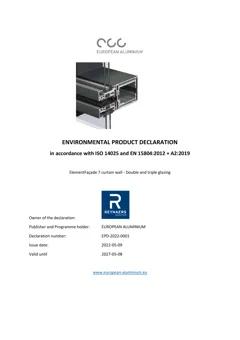

EPD: Aluminium framed curtain wall system, triple glazed, 1.8 x 3.7 m, 66.72 kg/m2, EF 7-triple glazing (Reynaers Aluminium)

The product object of the EPD is a unitised façade system with an intelligent design and exceptional performance. The prefabricated elements enable a fast and economic installation with limited use of manpower and tooling – certainly compared to traditional curtain walls. The system is compatible with inside and outside opening elements, but also sliding doors for balconies. ElementFaçade 7 can produce very large elements with performances suitable for most high-rise projects, reducing the need for time-consuming and expensive testing.

Manufacturer legal entity:

Reynaers Aluminium

Manufacturer:

Reynaers

Country of manufacturer:

belgium

Product name:

Aluminium framed curtain wall system, triple glazed

Commercial names:

EF 7-triple glazing

Material type:

Glass

Material subtype:

Glass facades and glazing

Environmental & technical characteristics

Global warming potential (A1-A3):

134 kg CO2e/m2

Technical specification:

1.8 x 3.7 m, 66.72 kg/m2

Available units for calculation:

m2, kg, ton

Unique identifier (OCLID):

664799840130a42bf7ba34b0

Sustainability data background information

EPD number:

EPD-2022-0001

EPD program:

European Aluminium

Publication year:

2022

Product category rules (PCR):

EN15804+A2

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

GaBi
