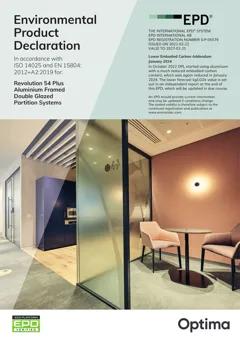

Double glazed Revolution 54 Plus is available in two distinct designs, distinguished by the height of the frame: either 54mm (w) x 25mm (h) or 54mm (w) x 50mm (h) extrusions. Both inner and outer deflection heads are available, to suit your design intent, and each style can accommodate up to +/-25mm or up to +/-40mm deflection. To suit the desired aesthetic, the aluminium base channel can be either 25mm or 50mm deep. Revolution 54 Plus can accommodate glass panels up to 1500mm wide, subject to height, configuration, and site logistics. glazing bar, making it an ideal solution for glazed fins or clerestory glazing, where acoustic performance and design aesthetics cannot be compromised. The excellent acoustic performance, aesthetic appeal and adaptability of Revolution 54 Plus makes it one of our most popular systems. Revolution 54 Plus is also available with our slimline aluminium Shoreditch Edition framework. This EPD applies to the following Revolution 54 Plus double glazed partition systems (using 6mm toughened & 8.8mm acoustic laminated clear glass.
