EPD: Aluminium medium voltage primary underground distribution cable, 1000 KCMIL, 1 conductors, 8.97 kg/m, 66270405 (Southwire Company LLC)

Name: Aluminium medium voltage primary underground distribution cable
Creator: Southwire

The cable is composed of a moisture blocked unilay compressed stranded 1350-H16/26 aluminum phase conductor, covered by a semi-conducting cross-linked polyethylene strand shield, a tree-retardant cross-linked polyethylene primary insulation, and a semi-conducting cross-linked polyethylene insulation shield. Conductors are available with 100% insulation level. Has a Super Smooth conductor shield. A concentric neutral of bare copper wires and a sunlight resistant, -40°C rated, insulating linear low density polyethylene jacket are applied over the insulation shield. This EPD includes results for the following products: 66270405 (1000KCMIL), 60708701 (1000KCMIL), 61229601 (1000KCMIL), 61424230 (500KCMIL), 61736825 (1250KCMIL), 66129015 (1/0AWG), 66190901 (750KCMIL), 66270406 (1000KCMIL).

Manufacturer legal entity:

Southwire Company LLC

Manufacturer:

Southwire

Country of manufacturer:

georgiaUS,

USA

Product name:

Aluminium medium voltage primary underground distribution cable

Commercial names:

66270405

Material type:

Installations and systems

Material subtype:

Cables

Type:

cablePower

Environmental & technical characteristics

Global warming potential (A1-A3):

39 kg CO2e/m

Technical specification:

1000 KCMIL, 1 conductors, 8.97 kg/m

Available units for calculation:

m, kg, ton

Unique identifier (OCLID):

65a4d2f5947ea713e47f2add

Sustainability data background information

EPD number:

4790297660.110.1

EPD program:

UL Environment

Publication year:

2022

Product category rules (PCR):

PCR for Part A: Construction Products and Services, v1.0, 2017, Part B: Electrical Cables and Wires, v1.0, October 2020.

Environmental standard:

ISO 14040, EN15804+A1

Data source:

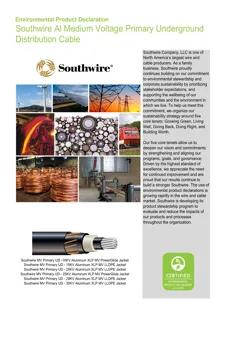

EPD Southwire Al Medium Voltage Primary Underground Distribution Cable

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
