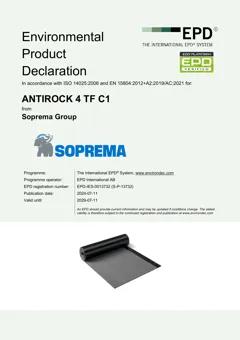

EPD: Bitumen roof waterproofing membrane, single layer, 4.3 mm, 4.76 kg/m2, ANTIROCK 4 TF C1 (SOPREMA NV)

Membrane composed of elastomer modified bitumen and a composite polyester reinforcement. Used as a single layer waterproofing system, underneath asphalt concrete or mastic asphalt, for civil works and car parks. The upper surface is finished with talcum/sand and the overlap is protected by a thermofusible film. The lower surface is protected by a thermofusible film. Energy consumption and used ancillary materials during installation are considered and are based on the average installation scenario of the product. The installation phase includes 10% overlapping material. The membrane has a reference service life of 70 YEARS, if combined with Soprema top layer.

Manufacturer legal entity:

SOPREMA NV

Manufacturer:

Soprema

Country of manufacturer:

belgium

Product name:

Bitumen roof waterproofing membrane, single layer

Commercial names:

ANTIROCK 4 TF C1

Material type:

Plastics, membranes and roofing

Material subtype:

Bitumen and other roofing

Environmental & technical characteristics

Global warming potential (A1-A3):

4.23 kg CO2e/m2

Technical specification:

4.3 mm, 4.76 kg/m2

Available units for calculation:

m2, kg, ton, m3

Unique identifier (OCLID):

671b924811ba8e56d7f17972

Sustainability data background information

EPD number:

EPD-IES-0013732:001

EPD program:

International EPD System

Publication year:

2024

Product category rules (PCR):

PCR 2019:14 Construction products, version 1.3.4

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
