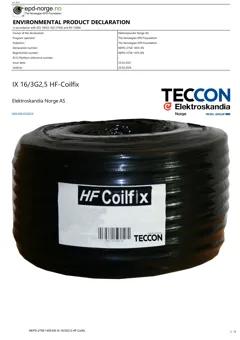

Manufacturer page.EPD: BUS signal trasfer cable, 0.14 kg/m, IX 16/3G2,5 HF-Coilfix (Elektroskandia Norge AS)
Pre-wired corrugated, Halogen free pliable / self-recovering conduit acc. to EN 61386-1 and EN 61386-22. H07Z1-R- halogen free insulated wire. The solution may be installed in open or closed environment, behind ceiling, in wall or below deck - embedded in concrete. Cable shall be used according to reference EN 50565-1 and EN 50565-2-18A/B. Contact with water is not permitted. Fire performance according to CPR EN 50575. The conduit material is a halogen free, flame retardant, self-extinguishing polypropylene with low toxic and smoke emission. Construction standard - Pipe: EN 611386-1; EN 61386-22 Pipe designation: ICTA 34423 Construction standard- Cable: EN 50525-1; EN 50525-3-31
Manufacturer legal entity:
Elektroskandia Norge AS
Manufacturer:
Country of manufacturer:
norwayProduct name:
BUS signal trasfer cable
Commercial names:
IX 16/3G2,5 HF-Coilfix
Material type:
Installations and systems
Material subtype:
Cables
Type:
cablePower
Environmental & technical characteristics
Global warming potential (A1-A3):
0.691 kg CO2e/m
Technical specification:
0.14 kg/m
Available units for calculation:
m, kg, ton
Unique identifier (OCLID):
666c381184a05a31f5a9cd9c
Sustainability data background information
EPD number:
NEPD-2758-1455-EN
EPD program:
EPD Norge
Publication year:
2021
Product category rules (PCR):
NPCR 027 Part B for Electrical cables and wires
Environmental standard:
EN15804+A1
Data source:
EPD IX 16/3G2,5 HF-Coilfix
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
ecoinvent
