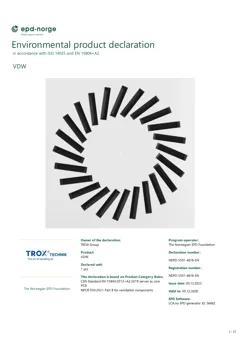

EPD: Ceiling swirl diffuser, VDW (TROX Group)

With low sound power level for comfort zones, with individually manually adjustable air control blades. For more information see: www.trox.de/en/9a223ad7f3c464c5 Ceiling swirl diffusers with square or circular diffuser face. Supply air and extract air variants for comfort zones, for a maximum air change rate of 35 per hour. Diffuser face with individually manually adjustable air control blades for horizontal swirling supply air discharge creating high induction levels. For installation into all types of suspended ceilings. Ready-to-install component consisting of the diffuser face with radially arranged, individually adjustable black or white set of air control blades and a plenum box, which is also square in the case of square faceplates (-Q) and round in the case of rounded faceplates (-R). The plenum box has an equalising element for supply air. The plenum box always includes a horizontally or vertically arranged spigot, cross bar and drilled holes or suspension lugs for suspension. The diffuser face is fixed to the cross bar with a central screw, concealed by a decorative cap. Spigot suitable for ducts to EN 1506 or EN 13180. Sound power level of the air-regenerated noise measured according to EN ISO 5135. This EPD includes the environmental data of the product series VDW. The following represents a representative dataset of the most sold variant in the declared sales year (VDW-Q-Z-0-M-0/400x16/0).

Manufacturer legal entity:
TROX Group
Manufacturer:
Country of manufacturer:
germany country flaggermany
Product name:
Ceiling swirl diffuser
Commercial names:
VDW
Material type:
Installations and systems
Material subtype:
HVAC components and equipment

Environmental & technical characteristics

Global warming potential (A1-A3):
13.4 kg CO2e/unit
Available units for calculation:
unit, kg, ton
Unique identifier (OCLID):
667ee705ab09e0155e4c308c

Sustainability data background information

EPD number:
NEPD-5501-4818-EN
EPD program:
EPD Norge
Publication year:
2023
Product category rules (PCR):
NPCR 030:2021 Part B for ventilation components
Environmental standard:
EN15804+A2
Verification status:
2.27 kg/unit
Upstream database:
ecoinvent
