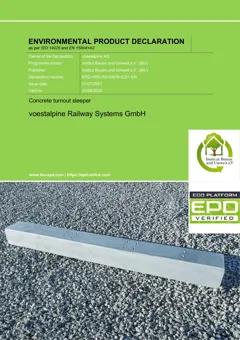

EPD: Concrete railway sleepers, 166 kg/lm, 2250 kg/m3 (voestalpine Railway Systems GmbH)

voestalpine Railway Systems GmbH is a leading global provider of system solutions for rail infrastructure. Thanks to the company s decades of experience and expertise in rail infrastructure, the concrete turnout sleepers are designed, optimized and further developed taking into account the entire railway superstructure. The concrete turnout sleepers are produced at the following three production facilities: TSFA GmbH, Sollenau (Austria), voestalpine Turnout Technology Germany GmbH, Butzbach (Germany) andTravertec S.R.L., Buzau (Romania). The product group of prestressed concrete turnout sleepers comprises different types of highquality turnout sleepers, which are optionally delivered with under sleeper pads and preassembled fastening systems. The declared products are prestressed concrete parts of different size and design for use as concrete turnout sleepers. The concrete turnout sleepers support and keep the rails and turnout components in the correct position and transfer the loads to the track superstructure. The concrete consists of • prestressed steel, • cement (hydraulic binder), • sand and gravel of different grain sizes (aggregates) • water and • admixtures and additives. Castin plastic parts of a dowel fastener form the anchor for attachingscrewing the rail fastening systems. Depending on the design of the fastening system, additional reinforcement elements such as end brackets or dowel reinforcements made of steel are required. Depending on requirements, the concrete turnout sleepers may be alternatively supplied preassembled 3 Environmental Product Declaration voestalpine Railway Systems GmbH – Concrete turnout sleeper, voestalpine with under sleeper pads, ribbed base plates or fastening material for rails. A possible preassembly takes place in a separate work step within the plants and is not taken into account in this EPD. The basic geometry of the turnout sleeper can vary in height, width and design.

Manufacturer legal entity:

voestalpine Railway Systems GmbH

Manufacturer:

voestalpine

Country of manufacturer:

austria, germany, romania

Product name:

Concrete railway sleepers

Material type:

Precast concrete

Material subtype:

Structural concrete (beams, columns, piling)

Environmental & technical characteristics

Global warming potential (A1-A3):

43.6 kg CO2e/m

Technical specification:

166 kg/lm, 2250 kg/m3

Available units for calculation:

m, kg, ton

Unique identifier (OCLID):

63c17f5245e36f748dbc7927

Sustainability data background information

EPD number:

EPD-VRS-20210079-ICD1-EN

EPD program:

IBU

Publication year:

2021

Product category rules (PCR):

PCR Precast concrete components, 30.11.2017

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

GaBi
