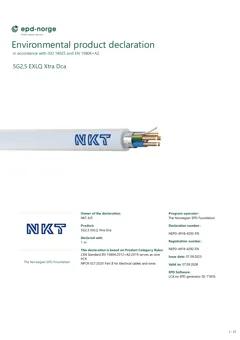

EPD: Electrical cable with solid annealed copper conductor for fixed installation, 0.23 kg/m, rated voltage: 0.45/0.75 kV, 5G2,5 EXLQ Xtra Dca (NKT)

EXLQ Xtra is registered in the Building Materials Database and can be included in a Nordic Swan Ecolabelled building. Cables according to this standard are intended for fixed installation, as well as in pipes or ducts. The cables can be placed indoors and outdoors, but not in water. However, please note that the cables life expectancy is reduced by long-term exposure to UV light. The conductor insulation should be protected from direct UV light, which may occur in, for example, light fixtures and light signs. When laying in the ground, the cable must be provided with additional protection against mechanical stresses.

Manufacturer legal entity:

NKT

Manufacturer:

NKT

Country of manufacturer:

poland

Product name:

Electrical cable with solid annealed copper conductor for fixed installation

Commercial names:

5G2,5 EXLQ Xtra Dca

Material type:

Installations and systems

Material subtype:

Cables

Environmental & technical characteristics

Global warming potential (A1-A3):

1.28 kg CO2e/m

Technical specification:

0.23 kg/m, rated voltage: 0.45/0.75 kV

Available units for calculation:

m, kg, ton

Unique identifier (OCLID):

65fd7c0c7243ef2d0e5eb33a

Sustainability data background information

EPD number:

NEPD-4918-4292-EN

EPD program:

EPD Norge

Publication year:

2023

Product category rules (PCR):

NPCR 027:2020 Part B for Electrical cables and wires

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
