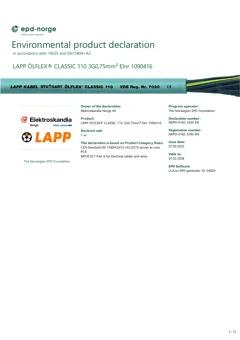

Manufacturer page.EPD: Flame-retardant power cable with copper conductor and PVC insulation for industrial use, 0.05 kg/m, nominal voltage 300/500 V, test voltage 4 kV, LAPP ÖLFLEX® CLASSIC 110 3G - El.nr:1090416 (Elektroskandia Norge AS, France plant)
Space-saving installation due to small cable diameters High electrical performance due to 4 kV test voltage Application range Plant engineering Industrial machinery Heating and air-conditioning systems Conveyor and transport systems Product specification Product Make-up Fine-wire strand made of bare copper wires PVC insulation LAPP P8/1 Cores twisted in layers PVC outer sheath, grey Materials kg % Copper conductor 0,03 48,53 Plastic - Polyvinyl chloride (PVC) 0,04 51,47 Total 0,07 Technical data: Flame-retardant according IEC 60332-1-2 Good chemical resistance Core identification code: Black with white numbers acc. to VDE 0293-334 Conductor stranding: Fine wire according to VDE 0295, class 5/IEC 60228 class 5 Minimum bending radius: Occasional flexing: 15 x outer diameter Fixed installation: 4 x outer diameter Nominal voltage: U0/U: 300/500 V Test voltage: 4000 V Protective conductor: G = with GN-YE protective conductor X = without protective conductor Temperature range: Occasional flexing: -5°C to +70°C Fixed installation: -40°C to +80°C
