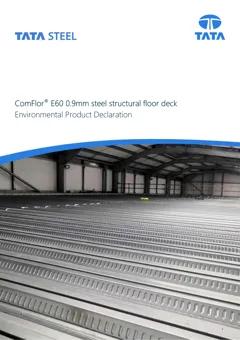

EPD: Galvanized profiled steel decking, for composite floor slabs/decks, 0.9 mm, 1000 mm width, 9.27 kg/m2, ComFlor® E60 (Tata Steel)

Composite floor slabs or decks consist of profiled steel decking with an in-situ reinforced concrete topping. The steel decking acts as a permanent formwork for the concrete and provides tensile resistance as a result of the shear bond between the deck and concrete. Once the concrete has gained strength, the two materials act together compositely. The composite slab is connected to the steel beams, with the composite interaction being achieved by the attachment of shear connectors to the top flange of the beam. These connectors generally take the form of headed studs and are welded to the beam, and provide sufficient longitudinal shear connection between the beam and the concrete so that they act together structurally.

Manufacturer legal entity:

Tata Steel

Manufacturer:

Tata Steel

Country of manufacturer:

unitedKingdom

Product name:

Galvanized profiled steel decking, for composite floor slabs/decks

Commercial names:

ComFlor® E60

Material type:

Steel and other metals

Material subtype:

Hot-dip galvanized/zinc coated steel

Environmental & technical characteristics

Global warming potential (A1-A3):

26.1 kg CO2e/m2

Technical specification:

0.9 mm, 1000 mm width, 9.27 kg/m2

Available units for calculation:

m2, kg, ton, m3

Unique identifier (OCLID):

66ed900f8696d056de0a0186

Sustainability data background information

EPD number:

EPD-TS-2022-006

EPD program:

TATA Steel

Publication year:

2022

Product category rules (PCR):

The CEN standard EN 15804:2012+A1:2013 serves as the core Product Category Rules (PCR)

Environmental standard:

EN15804+A1

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

GaBi
