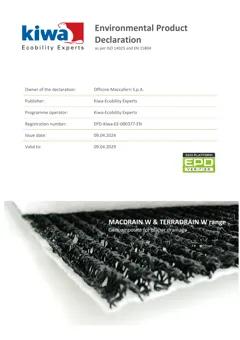

EPD: Geocomposites for planar drainage, 0.720 kg/m2, MACDRAIN W & TERRADRAIN W (Officine Maccaferri S.p.A.)

MacDrain W, TerraDrain W and Terradrain Football and Sport are geocomposites for planar drainage with a draining core in extruded monofilaments. The draining three-dimensional core will have a ``W`` configuration as longitudinal parallel channels. They can be realized by alternatively thermobonding the drainage core with • two filtering nonwoven geotextiles that may be working as separation or protection layers • one filtering nonwoven geotextiles • one filtering nonwoven geotextiles and one polypropylene tarp / membrane. The external layers are chosen according to the specific application requirements.

Manufacturer legal entity:

Officine Maccaferri S.p.A.

Manufacturer:

Officine Maccaferri

Country of manufacturer:

germany

Product name:

Geocomposites for planar drainage

Commercial names:

MACDRAIN W & TERRADRAIN W

Material type:

Plastics, membranes and roofing

Material subtype:

Plastic membranes

Environmental & technical characteristics

Global warming potential (A1-A3):

1.74 kg CO2e/m2

Technical specification:

0.720 kg/m2

Available units for calculation:

m2, kg, ton

Unique identifier (OCLID):

665d598aba1aa03104b01720

Sustainability data background information

EPD number:

EPD-Kiwa-EE-000377-EN

EPD program:

Kiwa BCS

Publication year:

2024

Product category rules (PCR):

PCR B: Product Category Rules for geosyn-thetic products Edition 2022-02-08

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
