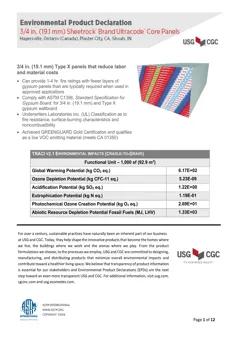

EPD: Gypsum boards, 19.1 mm (3/4 in), 14.6 kg/m2, 2438-3658 x 1219 mm, Type X, 3/4 in. Sheetrock ® Brand Ultracode ® Core Panels (USG)

Sheetrock ® Brand Ultracode ® Core Panels (UL Type ULTRACODE) are 3/4 in. (19.1 mm) Type X panels that can provide 1-4 hr. fire ratings with fewer layers of gypsum panels than are typically required when used in approved applications. These enhanced fire-resistant gypsum panels feature a noncombustible gypsum core that is encased in 100% recycled face and back papers that form a high strength composite design. The face paper is folded around the long edges to reinforce and protect the core, and the ends are cut square and even. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with Sheetrock ® Brand joint treatment systems. The panels are UL Classified for fire resistance and can be used in any UL Design in which Type ULTRACODE panels are listed. On the face, along the long edge of each panel, the UL Type Designation is printed for easy identification by building inspectors.

Manufacturer legal entity:
USG
Manufacturer:
Country of manufacturer:
california country flagcalifornia, indiana country flagindiana, ontario country flagontario, USA country flagUSA, canada country flagcanada
Product name:
Gypsum boards
Commercial names:
3/4 in. Sheetrock ® Brand Ultracode ® Core Panels
Material type:
Gypsum and plaster
Material subtype:
Specialty gypsum board

Environmental & technical characteristics

Global warming potential (A1-A3):
4.39 kg CO2e/m2
Technical specification:
19.1 mm (3/4 in), 14.6 kg/m2, 2438-3658 x 1219 mm, Type X
Available units for calculation:
m2, kg, ton, m3
Unique identifier (OCLID):
60cc9dfe1a4c4274ef383b44

Sustainability data background information

EPD number:
EPD-226
EPD program:
ASTM
Publication year:
2021
Product category rules (PCR):
NSF, PCR for Gypsum Panel Products, v1.1, April 2020
Environmental standard:
EN15804+A1
Verification status:
Fire resistant
Upstream database:
GaBi
