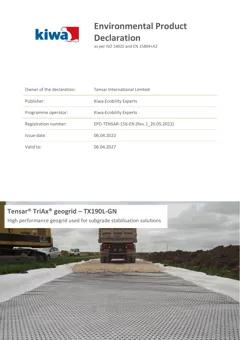

EPD: Hexagonal geogrid from polypropylene sheet bonded with geotextile, 628 g/m2, 3.8x50m rolls, TriAx® TX190L-GN (Tensar International Limited)

The geogrid is comprised of multiple hexagons formed by equilateral triangular apertures. These apertures are defined by a structure of monolithic, multidirectional tensile elements of defined orientation, size and shape. The hexagonal geogrid is manufactured from an extruded polypropylene sheet, which is then punched and orientated in three equilateral directions so that the resulting ribs of the triangular apertures have a high degree of molecular orientation which continues through the mass of integral node. The geogrid is supplied bonded with a geotextile to form a laminated geocomposite.

Manufacturer legal entity:

Tensar International Limited

Manufacturer:

Tensar International

Country of manufacturer:

unitedKingdom

Product name:

Hexagonal geogrid from polypropylene sheet bonded with geotextile

Commercial names:

TriAx® TX190L-GN

Material type:

Plastics, membranes and roofing

Material subtype:

Plastic membranes

Environmental & technical characteristics

Global warming potential (A1-A3):

1.76 kg CO2e/m2

Technical specification:

628 g/m2, 3.8x50m rolls

Available units for calculation:

m2, kg, ton

Unique identifier (OCLID):

659334973e709d15c0ec8d09

Sustainability data background information

EPD number:

EPD-TENSAR-156-EN (Rev.1_20.05.2022)

EPD program:

Kiwa BCS

Publication year:

2022

Product category rules (PCR):

PCR B – Geosynthetic products 2022-02-08

Environmental standard:

EN15804+A1, EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
