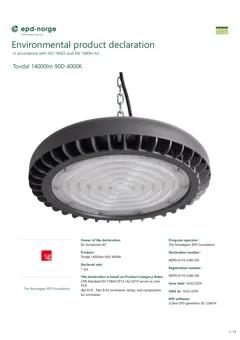

EPD: High-bay luminaire for warehouses, 97 W, 145 lm/W, 5 kg/unit, Tovdal 14000lm 90D 4000K (SG Armaturen)

Tovdal is a powerful and stylish ‘high bay’ luminaire. It is very suitable for warehouses and industrial businesses and the multiple lumen packages make it also usable for other kinds of application.Tovdal is easily installed by a ceiling/wall bracket (available as accessory) or a chain (not included). Connection by an IP68 quick connector. The effective optics ensures an optimal symmetric 90-degree light distribution. Wattage: 97 W. Luminous flux: 14080 lm. Efficacy: 145 lm/W. Colour temperature: 4000 K. Colour rendering: Ra>80. MacAdams factor: SDCM:3 . Lifetime: L80/B10>100,000, L94>50,000. Light distribution: Direct. Control/dimming type: On/Off. Luminiare class: Class I. Housing: Aluminium. Optics: UV-stabilized polycarbonate. Height: 132 mm. Diameter: 350 mm. EAN: 7021986070026.

Manufacturer legal entity:

SG Armaturen

Manufacturer:

SG Armaturen

Country of manufacturer:

china

Product name:

High-bay luminaire for warehouses

Commercial names:

Tovdal 14000lm 90D 4000K

Material type:

Installations and systems

Material subtype:

Lighting

Environmental & technical characteristics

Global warming potential (A1-A3):

100.0 kg CO2e/unit

Technical specification:

97 W, 145 lm/W, 5 kg/unit

Available units for calculation:

unit, kg, ton

Unique identifier (OCLID):

65eeb3ef830b4506a6d4bae6

Sustainability data background information

EPD number:

NEPD-6116-5383-EN

EPD program:

EPD Norge

Publication year:

2024

Product category rules (PCR):

IBU PCR - Part B for luminaires, lamps, and components for luminaires

Environmental standard:

EN15804+A2

Verification status:

Internally verified

Upstream database:

ecoinvent
