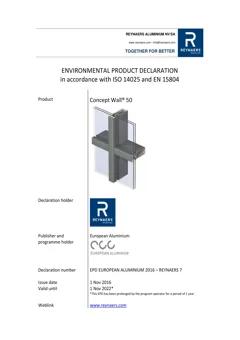

EPD: Highly insulated aluminium framed curtain wall system, double glazed, size: 3.60 x 7.20m, insulated, 25.22 kg/m2, Concept Wall® 50 (Reynaers)

This Environmental Product Declaration (EPD) is for business to business communication. This EPD refers to the Concept Wall® 50 (CW 50) which is a façade and roof system that offers unlimited design freedom and allows maximum transparency. CW 50 is available in several design and glazing variants, but also includes different technical variants to comply with specified levels of fire-resistance and thermal insulation. The design variants offer solutions for both the exterior and the interior of the building.

Manufacturer legal entity:

Reynaers

Manufacturer:

Reynaers

Country of manufacturer:

belgium

Product name:

Highly insulated aluminium framed curtain wall system, double glazed

Commercial names:

Concept Wall® 50

Material type:

Glass

Material subtype:

Glass facades and glazing

Environmental & technical characteristics

Global warming potential (A1-A3):

72 kg CO2e/m2

Technical specification:

size: 3.60 x 7.20m, insulated, 25.22 kg/m2

Available units for calculation:

m2, kg, ton

Unique identifier (OCLID):

62dd9f1cabf5cf5cb9382fb6

Sustainability data background information

EPD number:

EPD EUROPEAN ALUMINIUM 2016 – REYNAERS 7

EPD program:

European Aluminium

Publication year:

2016

Product category rules (PCR):

EAA Product Category Rules (PCR) for Aluminium Building Products – version of 30 January 2013

Environmental standard:

EN15804+A1

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

GaBi
