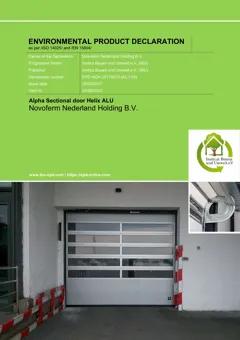

EPD: Industrial and garage sectional door Helix, 26.11 kg/m2, std dim.: 3800 x 3500 mm, Lambda=0.164 W/(m.K), Alpha Helix ALU (Novoferm Nederland B.V.)

Alpha industrial sectional doors are used in private homes, agricultural buildings, industrial buildings and non-residential buildings. For the application and use the respective national provisions apply. The space-saving industrial sectional door can be fitted to both outdoor and indoor walls. The Helix ALU sectional door is assembled from 1 horizontally profiled microline bottom panel and 40 mm ALU panels with a working height of 366, 488, or 610 mm. When the door is opened, the sections slide back under the roof or run into a spiral. In addition to the standard lift track system, high lift, vertical lift, and roof following are available. The industrial sectional door complies with /EN13241-1/ (products without smoke control and fire resistant characteristics).

Manufacturer legal entity:

Novoferm Nederland B.V.

Manufacturer:

Novoferm

Country of manufacturer:

netherlands

Product name:

Industrial and garage sectional door Helix

Commercial names:

Alpha Helix ALU

Material type:

Doors, windows and partitioning systems

Material subtype:

Metal and industrial doors

Type:

rollerShutterOverheadClosures

Environmental & technical characteristics

Global warming potential (A1-A3):

99.9 kg CO2e/m²

Technical specification:

26.11 kg/m², std dim.: 3800 x 3500 mm, Lambda=0.164 W/(m.K)

Available units for calculation:

m², kg, ton, m³

Unique identifier (OCLID):

5d19af978e202b07542efc06

Sustainability data background information

EPD number:

EPD-NOV-20170072-IAC1-EN

EPD program:

IBU

Publication year:

2017

Product category rules (PCR):

PCR Windows and doors

Environmental standard:

EN15804+A1

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
