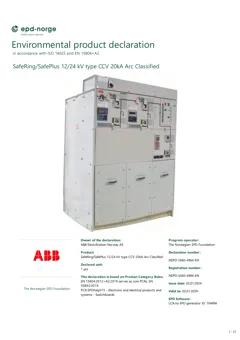

EPD: Medium voltage gas-insulated switchgear, 400.27 kg/unit, safering/safeplus 12/24 kv type ccv 20ka arc classified (ABB Electrification Norway AS)
ABB SafeRing/SafePlus Switchgear is a medium voltage gas insulated ring main unit for secondary distribution. The main function of the switchgears is to ``establish and cut off the supply of a downstream installation from an electrical and/or mechanical control and to protect people and premises at risk of fire or explosion against insulation defects`` SafeRing/SafePlus can be supplied in a number of different configurations suitable for most switching applications in 12/24 kV distribution networks. SafeRing/SafePlus 12 / 24 kV type CCV 20 kA Arc Classified switchgear consist of two load-break switch units (C-module) plus one circuit breaker (V-module). The manufacturer proclaims a minimum product service life of 30 years but the calculations are based on 20 years as the PCR dictates. The functional unit of this study is described as 1 piece of SafeRing/SafePlus 12 / 24 kV type CCV 20 kA Arc Classified including heat loss during a 20 year product lifetime. The functional unit is IAC classified. Product specification Materials kg % Epoxy resin insulator, Al2O3 7,72 1,93 Metal 369,61 92,34 Plastics 22,94 5,73 Total 400,27 Packaging kg % Packaging - Pallet 34,49 100,00 Total incl. packaging 434,76
