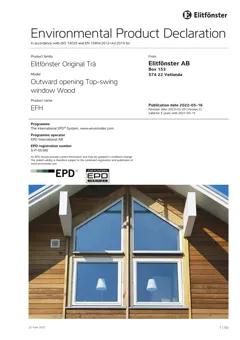

EPD: Outward opening wooden frame window, top-swing, triple glazed, 1230 x 1480 mm, U-value = 1.22 W/m2K, 37.82 kg/m2, EFH (Elitfönster AB (2023))

An outward opening wooden top-swing window with a 3-glazed insulating glass. The frame of the window opens outwards and can be turned around 180 degrees outside the facade thanks to the special top-swing hardware, which is practical when the glass is to be cleaned on the outside. The finished window weighs 37.82 kg per m². According to the Construction Products Regulation CPR (EU) no. 305/2011, the essential properties of products must be declared in the CE marking and Declaration of Performance. The technical properties of the window are reported in the following Declaration of performance, which can be accessed on Elitfönster’s website. DoP nr 61-29-CE1010101 Construction product declaration eBVD nr C-SE556007307301-36 A picture of Outward opening Top-swing window Wood - EFH can be seen to the right.

Manufacturer legal entity:

Elitfönster AB (2023)

Manufacturer:

Elitfönster

Country of manufacturer:

sweden

Product name:

Outward opening wooden frame window, top-swing, triple glazed

Commercial names:

EFH

Material type:

Doors, windows and partitioning systems

Material subtype:

Wood-framed glass doors

Environmental & technical characteristics

Global warming potential (A1-A3):

38.6 kg CO2e/m2

Technical specification:

1230 x 1480 mm, U-value = 1.22 W/m2K, 37.82 kg/m2

Available units for calculation:

m2, kg, ton

Unique identifier (OCLID):

64ebb3992899e6537de1b7a7

Sustainability data background information

EPD number:

S-P-05380, ver. 2

EPD program:

International EPD System

Publication year:

2022

Product category rules (PCR):

PCR 2019:14. Construction products and construction services. Version 1.11

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
