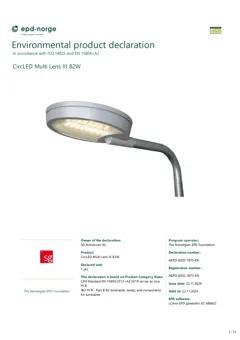

EPD: Powder-coated aluminium circular-shaped LED luminaire for mounting on mast, 7.98 kg/unit, IP66, CircLED Multi Lens III 82W (SG Armaturen AS)

Light for mounting on mast, IP66-rated. Luminaire body made of die-cast aluminium, powder-coated in black or grey. Reflector made of aluminium, powder-coated white. Optics are particularly well suited to giving a direct light distribution due to the tempered glass front. Complete with LED driver for operation of LED light sources mounted to component rail pre-mounted with six-metre connection cable. Lamp head prepared for mounting on 60 mm mast. Wattage 82W. Voltage 220-240V. Max. luminaires per circuit breaker B10 8, B16 12, C10 12, C16 20. Luminous flux 9870lm. Efficacy 120 lmW. Colour temperature 4000K. Colour rendering (CRI) Ra>70. MacAdams factor SDCM 3. Lifetime L80B10>80,000. ControlDimming type OnOff. Luminaire class Class II. Contains light source of energy class C. Breeam Fulfils Hea 01 for flicker free lighting. Length (mm) 523. Width (mm) 390. Height (mm) 135. EAN 5703821176934. The EPD also covers the following product, EAN 5703821176873 - CircLED Multi Grey Lens 3, Class II Top 9870lm 4000K Ra>70 OnOff, EAN 5703821176958 - CircLED Multi Side 9270lm 3000K Ra>70 OnOff, EAN 5703821176910 - CircLED Multi Top 9270lm 3000K Ra>70 OnOff

Manufacturer legal entity:
SG Armaturen AS
Manufacturer:
Country of manufacturer:
denmark country flagdenmark
Product name:
Powder-coated aluminium circular-shaped LED luminaire for mounting on mast
Commercial names:
CircLED Multi Lens III 82W
Material type:
Installations and systems
Material subtype:
Lighting
Type:
lightingSpecialty

Environmental & technical characteristics

Global warming potential (A1-A3):
103 kg CO2e/unit
Technical specification:
7.98 kg/unit, IP66
Available units for calculation:
unit, kg, ton
Unique identifier (OCLID):
679d1fdc2bfe6974dabb957c

Sustainability data background information

EPD number:
NEPD-8202-7873-EN
EPD program:
EPD Norge
Publication year:
2024
Product category rules (PCR):
CEN Standard EN 15804:2012+A2:2019 serves as core PCR IBU PCR - Part B for luminaires, lamps, and components
Environmental standard:
EN15804+A2
Data source:
EPD CircLED Multi Lens III 82W
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
ecoinvent
