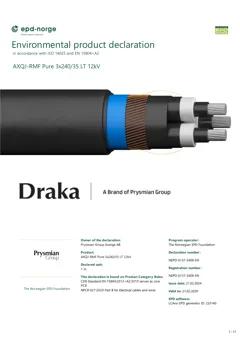

EPD: Power cable with aluminium conductor and XLPE-insulation for outdoor use, 3.98 kg/m, axqj-rmf pure 3x240/35 lt 12kv (Prysmian Group Sverige AB)

Halogen-free, flame retardant and self-extinguishing in case of fire. Smoke in the event of fire is limited, transparent (to facilitate evacuation) and not harmful to electronic equipment. The cable is primarily designed for indoor installation, tunnels, etc. The cable can be installed outdoors and in ground but ploughing is not recommended. Ripcords for easier and safer stripping of the outer sheath. Product specification Conductor material Aluminium Core insulation material XLPE Screen construction Wire screen Material outer sheath Low smoke zero halogen Rip cord Yes UV resistant Yes Materials kg % HFFR Polyolefin 0,93 23,32 Metal - Aluminium 1,86 46,70 Metal - Copper 0,27 6,74 Plastic - Ethylene vinyl acetate (EVA) 0,02 0,48 Plastic - Polyethylene 0,87 21,73 Tape - Nylon 6 0,01 0,37 Tape - Polyester 0,03 0,67 Total 3,98

Manufacturer legal entity:

Prysmian Group Sverige AB

Manufacturer:

Prysmian

Country of manufacturer:

sweden

Product name:

Power cable with aluminium conductor and XLPE-insulation for outdoor use

Commercial names:

axqj-rmf pure 3x240/35 lt 12kv

Material type:

Installations and systems

Material subtype:

Cables

Environmental & technical characteristics

Global warming potential (A1-A3):

44.2 kg CO2e/m

Technical specification:

3.98 kg/m

Available units for calculation:

m, kg, ton

Unique identifier (OCLID):

669e05e2b5b6d824b543fc4e

Sustainability data background information

EPD number:

NEPD-6137-5409-EN

EPD program:

EPD Norge

Publication year:

2024

Product category rules (PCR):

CEN Standard EN 15804:2012+A2:2019 serves as core PCR NPCR 027:2020 Part B for Electrical cables and wires

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
