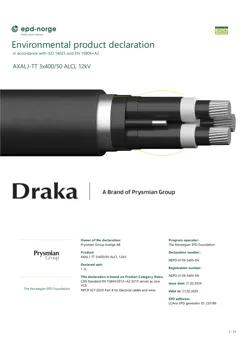

EPD: Power cable with aluminium conductor and XLPE insulation for underground applications, waterproof, 5.46 kg/m, AXALJ-TT 3x400/50 ALCL 12kV (Prysmian Group Sverige AB)

Totally water sealed three core power cable with corrosion protected aluminium screen. The cable is primarily designed for ploughing down in ground, but thanks to its robust design can also handle the stresses from installation in shallow lakes with limited currents. Radially water sealed by an aluminium laminate bonded to the outer sheath and longitudinally water sealed with swellable tapes. The screen is made up of circular corrosion protected aluminium wires that are covered with a semiconductive. By using the two strong ripcords stripping of the jacket becomes easier and safer for both man and cable.

Manufacturer legal entity:

Prysmian Group Sverige AB

Manufacturer:

Prysmian

Country of manufacturer:

sweden

Product name:

Power cable with aluminium conductor and XLPE insulation for underground applications, waterproof

Commercial names:

AXALJ-TT 3x400/50 ALCL 12kV

Material type:

Installations and systems

Material subtype:

Cables

Environmental & technical characteristics

Global warming potential (A1-A3):

77.1 kg CO2e/m

Technical specification:

5.46 kg/m

Available units for calculation:

m, kg, ton

Unique identifier (OCLID):

664798df0130a42bf7ba3471

Sustainability data background information

EPD number:

NEPD-6139-5405-EN

EPD program:

EPD Norge

Publication year:

2024

Product category rules (PCR):

CEN Standard EN 15804:2012+A2:2019 serves as core PCR NPCR 027:2020 Part B for Electrical cables and wires

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
