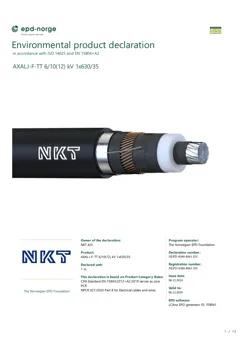

Manufacturer page.EPD: Power cable with aluminium conductor, 2.89 kg/m, AXALJ-F-TT 6/10(12) kV 1x630/35 (NKT A/S)
Cable for fixed installation in soil, water and pipes. Extra durable multilayer sheath. User-friendy at low temperatures. Made of material for easy recycling. Product specification 1 Aluminium, compacted stranded, longitudinally watertight. 2 Extruded semi conducting conductor screen. 3 XLPE, dry vulcanized, peroxide crosslinked. 4 Extruded, bonded or strippable semi-conducting insulation screen, depending on dimension. 5 Concentric copper wire screen where both copper wire and aluminum foil are used to achieve equivalent max. screen resistance. 6 Swellable tape screening wires, acheiving longitudinal water tightness. 7 PE laminated aluminium foil bonded to the sheath. Aluminium foil also serves as part of the metallic screen 8 Black PE sheath, meter marked. Equipped with rip cord for easier opening Materials kg % Aluminium foil, with plastic 0,09 3,02 Plastic - Polyethylene 0,80 27,63 Tape 0,03 1,14 Metal - Aluminium 1,70 58,60 Metal - Copper 0,28 9,62 Total 2,89 100,00
