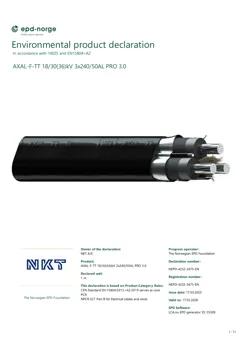

EPD: Power cable with aluminum conductor and XLPE insulation, 4.85 kg/m, AXAL-F-TT 18/30(36)kV 3x240/50AL PRO 3.0 (NKT A/S)

Three core cable for fixed installation in soil, water and pipes. Extra durable multilayer sheath. User-friendly at low temperatures. Made of material for easy recycling. Aluminum conductor, compacted stranded, longitudinally watertight. Extruded semi conducting conductor screen XPLE, dry vulcanized, peroxide crosslinked, nominal thickness 5,5mm. Extruded, easy strip semi conducting insulation screen. Three aluminum wires embedded in conductive corrosion resistant filling material. Aluminum wires in electrical contact with the aluminum foil that provides a full screen protection. Swelling tape and swelling yarn makes the cable longitudinally water tight. Aluminum foil glued to the sheath. Black PE composite constructed with a hard outer layer and a shock absorbing inner layer. Meter marked. Equipped with rip cord for easier opening.

Manufacturer legal entity:

NKT A/S

Manufacturer:

NKT

Country of manufacturer:

sweden

Product name:

Power cable with aluminum conductor and XLPE insulation

Commercial names:

AXAL-F-TT 18/30(36)kV 3x240/50AL PRO 3.0

Material type:

Installations and systems

Material subtype:

Cables

Environmental & technical characteristics

Global warming potential (A1-A3):

35.7 kg CO2e/m

Technical specification:

4.85 kg/m

Available units for calculation:

m, kg, ton

Unique identifier (OCLID):

666c382d84a05a31f5a9cdcb

Sustainability data background information

EPD number:

NEPD-4232-3475-EN

EPD program:

EPD Norge

Publication year:

2023

Product category rules (PCR):

NPCR 027:2020 Part B for Electrical cables and wires

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
