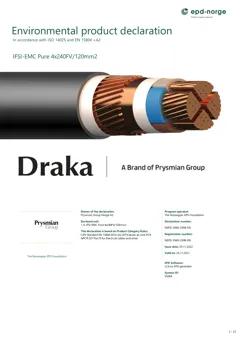

EPD: Power cable with copper conductor and XLPE insulation, 10.67 kg/m, 1 kV, IFSI-EMC Pure 4x240FV/120mm2 (Prysmian Group Norge AS)

Power cable with up to 1 kV operating voltage. Allowed indoors, outdoors and as a ground cable without extra protection. The Cu screen is 100% tight, has low coupling impedance and meets the EMC directive. The 3-conductor is symmetrically constructed and has a cu screen from 1.5mm² wire. Halogen-free cable is recommended used when it is important to avoid the formation of dense smoke and corrosive gases in the event of an overheating or fire. This cable is well suited as a sea cable down to 20m if it is protected against mechanical stress. The insulation material is PEX, with good seawater resistance. Conductor material Copper Conductor surface Bare Core insulation material XLPE Armoring/reinforcement material Copper, bare Screen construction Metallised foil Screen Yes Screen material Copper, bare Concentric conductor Copper Material inner sheath Halogen-free polymer Material outer sheath Halogen-free polymer Cable shape Round

Manufacturer legal entity:
Prysmian Group Norge AS
Manufacturer:
Country of manufacturer:
sweden country flagsweden
Product name:
Power cable with copper conductor and XLPE insulation
Commercial names:
IFSI-EMC Pure 4x240FV/120mm2
Material type:
Installations and systems
Material subtype:
Cables

Environmental & technical characteristics

Global warming potential (A1-A3):
78.7 kg CO2e/m
Technical specification:
10.67 kg/m, 1 kV
Available units for calculation:
m, kg, ton
Unique identifier (OCLID):
667ee71fab09e0155e4c3198

Sustainability data background information

EPD number:
NEPD-3960-2998-EN
EPD program:
EPD Norge
Publication year:
2022
Product category rules (PCR):
NPCR 027 Part B for Electrical cables and wires
Environmental standard:
EN15804+A2
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
ecoinvent
