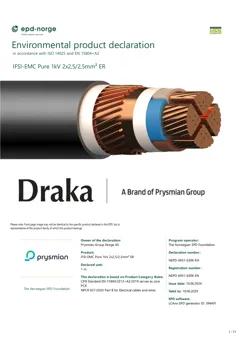

EPD: Power cable with copper conductor and XLPE insulation, 0.21 kg/m, IFSI-EMC Pure 1kV 2x2,5/2,5mm² ER (Prysmian Group Norge AS)
IFSI-EMC PURE 1KV CU Power cable with up to 1 kV operating voltage. Allowed indoors, outdoors and as a ground cable without extra protection. The Cu screen is 100% tight, has low coupling impedance and meets the EMC directive. The 3-conductor is symmetrically constructed and has a CU screen from 1.5mm². Halogen-free cable is recommended used when it is important to avoid the formation of dense smoke and corrosive gases in the event of an overheating or fire. Cables with AAL screen has a construction with an AL-foil in contact with a massive CU wire. The AL foil has an longitudinal slit and is not 100% covering (slit does not exceed 4mm). When applied to installation with highly sensitive equipment use IFSI-EMC Pure with CU screen.
Manufacturer legal entity:
Prysmian Group Norge AS
Manufacturer:
Country of manufacturer:
finland
Product name:
Power cable with copper conductor and XLPE insulation
Commercial names:
IFSI-EMC Pure 1kV 2x2,5/2,5mm² ER
Material type:
Installations and systems
Material subtype:
Cables
Type:
cablePower
Environmental & technical characteristics
Global warming potential (A1-A3):
0.698 kg CO2e/m
Technical specification:
0.21 kg/m
Available units for calculation:
m, kg, ton
Unique identifier (OCLID):
672a2fe37fa02c5a02d4288f
Sustainability data background information
EPD number:
NEPD-6931-6306-EN
EPD program:
EPD Norge
Publication year:
2024
Product category rules (PCR):
NPCR 027:2020 Part B for Electrical cables and wires
Environmental standard:
EN15804+A2
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
ecoinvent
