Manufacturer page.EPD: Power cable with fine-wire strand copper conductor and PVC insulation, 0.17 kg/m, LAPP ÖLFLEX® CLASSIC 110 CY 4G1,5mm² Elnr 1090671 (Elektroskandia Norge AS)
Flame-retardant according IEC 60332-1-2 Good chemical resistance High degree of screening low transfer impedance (max. 250 O/km at 30 MHz) Core identification code: Black with white numbers acc. to VDE 0293-334 Conductor stranding: Fine wire according to VDE 0295, class 5/IEC 60228 class 5 Minimum bending radius: Occasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter Nominal voltage: U0/U: 300/500 V Test voltage: 4000 V Protective conductor: G = with GN-YE protective conductor X = without protective conductor Temperature range: Occasional flexing: -5°C to +70°C Fixed installation: -40°C to +80°C
Manufacturer legal entity:
Elektroskandia Norge AS
Manufacturer:
Country of manufacturer:
franceProduct name:
Power cable with fine-wire strand copper conductor and PVC insulation
Commercial names:
LAPP ÖLFLEX® CLASSIC 110 CY 4G1,5mm² Elnr 1090671
Material type:
Installations and systems
Material subtype:
Cables
Type:
cablePower
Environmental & technical characteristics
Global warming potential (A1-A3):
1.20 kg CO2e/m
Technical specification:
0.17 kg/m
Available units for calculation:
m, kg, ton
Unique identifier (OCLID):
656cf6c84d1857683991e1bb
Sustainability data background information
EPD number:
NEPD-3721-2667-EN
EPD program:
EPD Norge
Publication year:
2022
Product category rules (PCR):
NPCR 027 Part B for Electrical cables and wires
Environmental standard:
EN15804+A1
Data source:

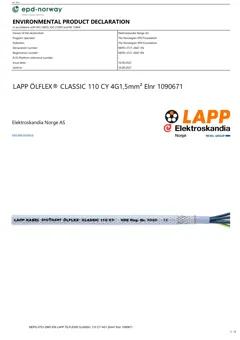

EPD LAPP ÖLFLEX® CLASSIC 110 CY 4G1,5mm² Elnr 1090671
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
ecoinvent
