Manufacturer page.EPD: Power distribution grid cable with aluminum conductor, 0.92 kg/m, 241 mm2, CCST 241 AL7 20(24)kV W (Elektroskandia Norge AS)
Covered conductor for overhead application in power distribution grids. CCST is a round-wire, non-compacted, thermoplastic covered conductor. The All Aluminum Alloy Conductor, AAAC is a longitudinal water blocked. All three layers are extruded in the same process. The UV-protected HDPE-jacket is both abrasion and tracking resistant. EN50397-1
Manufacturer legal entity:
Elektroskandia Norge AS
Manufacturer:
Country of manufacturer:
swedenProduct name:
Power distribution grid cable with aluminum conductor
Commercial names:
CCST 241 AL7 20(24)kV W
Material type:
Installations and systems
Material subtype:
Cables
Environmental & technical characteristics
Global warming potential (A1-A3):
8.24 kg CO2e/m
Technical specification:
0.92 kg/m, 241 mm²
Available units for calculation:
m, kg, ton
Unique identifier (OCLID):
667ee724ab09e0155e4c31cd
Sustainability data background information
EPD number:
NEPD-3519-2110-EN
EPD program:
EPD Norge
Publication year:
2022
Product category rules (PCR):
NPCR 027 Part B for Electrical cables and wires
Environmental standard:
EN15804+A1
Data source:

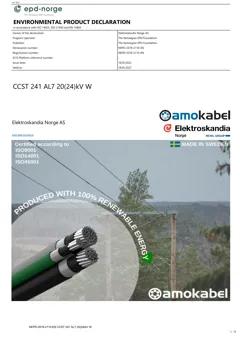

EPD CCST 241 AL7 20(24)kV W
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
ecoinvent
