Manufacturer page.EPD: Precast concrete double wall element, Wall panel thickness:50mm, 600 x 300 x 20 cm, 240 kg/m2, 1200 kg/m3, C30/37, X0, XC1, fire class REI60 (Abetong AB, Heidelberg Cement Group)
The product is prefabricated double wall elements consisting of aggregate, cement, reinforcement, and the necessary cast-in-material of steel for transport and assembling. The product is filled with concrete at the construction site. The product is used as walls mainly in heated buildings. Concrete strength C30/37. Exposure classes up to X0 and XC1. Life length class up to L100 (100 years). Fire classes up to REI60.
Manufacturer legal entity:
Abetong AB, Heidelberg Cement Group
Manufacturer:
Country of manufacturer:
swedenProduct name:
Precast concrete double wall element
Material type:
Precast concrete
Material subtype:
Concrete wall elements
Type:
precastConcreteWallElementUninsulated
Environmental & technical characteristics
Global warming potential (A1-A3):
0.169 kg CO2e/kg
Technical specification:
Wall panel thickness:50mm, 600 x 300 x 20 cm, 240 kg/m², 1200 kg/m³, C30/37, X0, XC1, fire class REI60
Available units for calculation:
kg, ton, m³, m²
Unique identifier (OCLID):
622222bc20d37f41c982b4a6
Sustainability data background information
EPD number:
RTS_167_22
EPD program:
RTS
Publication year:
2022
Product category rules (PCR):
RTS PCR (English version 26.8.2020)
Environmental standard:
EN15804+A1, EN15804+A2
Data source:

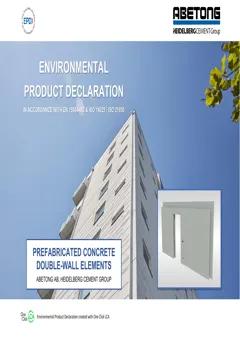

EPD PREFABRICATED CONCRETE DOUBLE-WALL ELEMENTS ABETONG AB, HEIDELBERG CEMENT GROUP
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
ecoinvent
