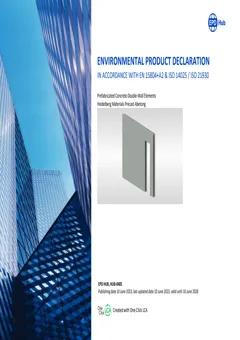

EPD: Prefabricated concrete double-wall elements, C30/37, 6000x3000x200 mm (Heidelberg Materials Precast Abetong)

The product is prefabricated concrete double-wall elements consisting of aggregate, cement, reinforcement and the necessary cast-in-material of steel for transport and assembling. It is filled with concrete at the construction site. The product is used as walls mainly in heated buildings. The product fulfils the requirements of SS-EN 13369:2018 Common rules for precast concrete products and SS-EN 14992:2007+A1:2012 Precast concrete products - Wall elements. Technical specifications: Concrete strength C30/37. Exposure classes up to X0 and XC1. Life length class up to L100 (100 years). Fire classes up to REI60. Typical dimensions are: Length of element 6,0 m. Height of element 3,0 m. Thickness of element 200 mm. (Panel thickness 50 mm)

Manufacturer legal entity:

Heidelberg Materials Precast Abetong

Manufacturer:

Heidelberg Materials

Country of manufacturer:

sweden, OCLEPD

Product name:

Prefabricated concrete double-wall elements

Material type:

Precast concrete

Material subtype:

Concrete wall elements

Environmental & technical characteristics

Global warming potential (A1-A3):

0.162 kg CO2e/kg

Technical specification:

C30/37, 6000x3000x200 mm

Available units for calculation:

kg, ton

Unique identifier (OCLID):

64e241436200d44a17220e87

Sustainability data background information

EPD number:

HUB-0485

EPD program:

EPD Hub

Publication year:

2023

Product category rules (PCR):

EPD Hub Core PCR version 1.0, 1 Feb 2022 EN 16757 Product Category Rules for concrete and concrete elements

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
