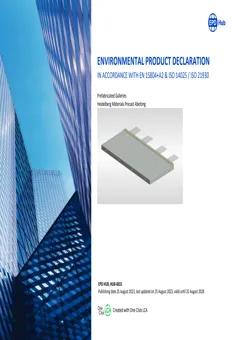

EPD: Prefabricated galleries, C30/37, 6000x2400x200 mm (Heidelberg Materials Precast Abetong)

The product is prefabricated galleries consisting of aggregate, cement, reinforcement, insulation and the necessary cast-in-material (including insulated connectors) for transport and assembling. The product is mainly used in residential buildings. The product fulfils the requirements of SS- EN 13369:2018 Common rules for precast concrete products. Technical specifications: Concrete strength C30/37. Exposure classes, top surface XD3+XF4 and bottom surface XC3+XF1. Life length class up to L50 (50 years). Fire class R30. Typical dimensions are: Length of element 6,0 m. Width of element 2,4 m. Thickness at highest point of element 200 mm. Thickness of stone wool insulation 80 mm.

Manufacturer legal entity:

Heidelberg Materials Precast Abetong

Manufacturer:

Heidelberg Materials

Country of manufacturer:

sweden, OCLEPD

Product name:

Prefabricated galleries

Material type:

Precast concrete

Material subtype:

Concrete wall elements

Environmental & technical characteristics

Global warming potential (A1-A3):

0.184 kg CO2e/kg

Technical specification:

C30/37, 6000x2400x200 mm

Available units for calculation:

kg, ton

Unique identifier (OCLID):

6507ea9cf494c01dbdebfdd0

Sustainability data background information

EPD number:

HUB-0655

EPD program:

EPD Hub

Publication year:

2023

Product category rules (PCR):

EPD Hub Core PCR version 1.0, 1 Feb 2022 EN 16757 Product Category Rules for concrete and concrete elements

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
