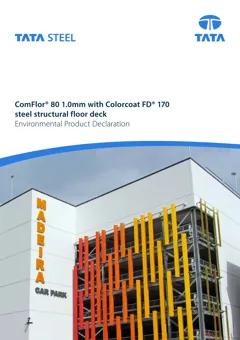

EPD: Profiled steel decking for composite floor slabs/decking, 1mm sheet thickness, 12.61kg/m2, ComFlor 80 1.0mm with Colorcoat FD 170 (Tata Steel)

Composite floor slabs or decks consist of profiled steel decking with an in-situ reinforced concrete topping. The steel decking acts as a permanent formwork for the concrete and provides tensile resistance as a result of the shear bond between the deck and concrete. Once the concrete has gained strength, the two materials act together compositely. The ComFlor® family of products comprises seven steel floor profiles, each designed specifically for a particular application area. ComFlor® 80 with Colorcoat FD® 170 is an 80mm deep, round shouldered trapezoidal profile, designed for greater spans.

Manufacturer legal entity:

Tata Steel

Manufacturer:

Tata Steel

Country of manufacturer:

unitedKingdom

Product name:

Profiled steel decking for composite floor slabs/decking

Commercial names:

ComFlor 80 1.0mm with Colorcoat FD 170

Material type:

Steel and other metals

Material subtype:

Hot-dip galvanized/zinc coated steel

Environmental & technical characteristics

Global warming potential (A1-A3):

38.5 kg CO2e/m2

Technical specification:

1mm sheet thickness, 12.61kg/m2

Available units for calculation:

m2, kg, ton, m3

Unique identifier (OCLID):

5d5d17cc8e202b17171f0e50

Sustainability data background information

EPD number:

EPD-TS-2018-009

EPD program:

TATA Steel

Publication year:

2018

Product category rules (PCR):

EN15804+A1

Environmental standard:

EN15804+A1

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

GaBi
