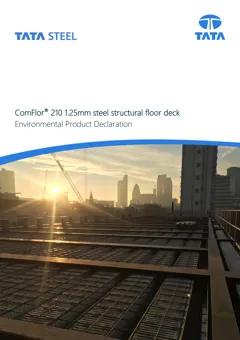

EPD: Profiled steel decking for composite floor slabs/decking, 1.25 mm sheet thickness, 600 mm width, 16.31 kg/m2, ComFlor 210 1.25mm steel structural floor deck (Tata Steel)

Composite floor slabs or decks consist of profiled steel decking with an in-situ reinforced concrete topping. The steel decking acts as a permanent formwork for the concrete and provides tensile resistance as a result of the shear bond between the deck and concrete. Once the concrete has gained strength, the two materials act together compositely. The composite slab is connected to the steel beams, with the composite interaction being achieved by the attachment of shear connectors to the top flange of the beam. These connectors generally take the form of headed studs and are welded to the beam, and provide sufficient longitudinal shear connection between the beam and the concrete so that they act together structurally.

Manufacturer legal entity:

Tata Steel

Manufacturer:

Tata Steel

Country of manufacturer:

unitedKingdom

Product name:

Profiled steel decking for composite floor slabs/decking

Commercial names:

ComFlor 210 1.25mm steel structural floor deck

Material type:

Steel and other metals

Material subtype:

Hot-dip galvanized/zinc coated steel

Environmental & technical characteristics

Global warming potential (A1-A3):

44.8 kg CO2e/m2

Technical specification:

1.25 mm sheet thickness, 600 mm width, 16.31 kg/m2

Available units for calculation:

m2, kg, ton, m3

Unique identifier (OCLID):

5e3d83028e202b7989bd1268

Sustainability data background information

EPD number:

EPD-TS-2020-005

EPD program:

TATA Steel

Publication year:

2020

Product category rules (PCR):

EN15804+A1

Environmental standard:

EN15804+A1

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

GaBi
