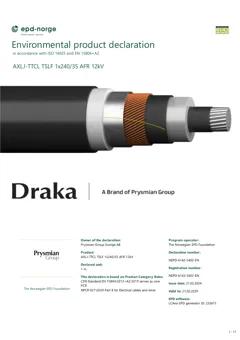

EPD: Single core power distribution cable for outdoor use, 3 phase, 1.4 kg/m, axlj-ttcl tslf 1x240/35 afr 12kv (Prysmian Group Sverige AB)
Single-core, distribution cable for outdoor use in 3-phase formation. Installation in pipes and ground/water. Both radial and longitudinal water sealed. Can be ploughed down. The outer sheath has a conductive layer that greatly extends the possibilities to do a sheath testing before, during and after installation. Ripcords for easier and safer stripping of the outer sheath. Product specification Conductor design Stranded, round, compacted aluminium acc. to IEC 60228 class 2, longitudinal water sealed Conductor material Aluminium Core insulation material XLPE Screen construction Aluminium tape and copper wire Material outer sheath MDPE Laminated sheath Yes Longitudinal water blocking screen Yes Rip cord Yes UV resistant Yes Materials kg % Adhesive 0,00 0,11 Fire-, heat- and UV-stabilizers 0,00 0,24 Metal - Aluminium 0,68 48,67 Metal - Copper 0,20 14,42 Plastic - Polyethylene 0,38 27,36 Plastic - Polyethylene (MDPE) 0,12 8,38 Tape 0,01 0,82 Total 1,40
sweden
