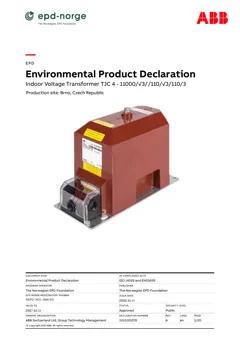

EPD: Single-pole insulated voltage transformer, 220x148x338 mm, 23.7 kg/unit, TJC 4 - 11000/√3//110/√3/110/3 (ABB Switzerland Ltd)

The production of the instrument transformers, from which medium voltage indoor transformer TJC 4 is part of, is located in the ABB Brno Videnska factory. The instrument transformers are produced and assembled directly in the ABB factory combined with components produced by ABB’s suppliers. Some sub-assemblies like a secondary terminal cover, and primary output are produced by suppliers in Poland, China and Czech Republic. The TJC 4 single-pole insulated voltage transformer is cast in epoxy resin and designed mostly for insulation voltage of 3,6 kV to 12 kV.

Manufacturer legal entity:

ABB Switzerland Ltd

Manufacturer:

ABB

Country of manufacturer:

czechRepublic

Product name:

Single-pole insulated voltage transformer

Commercial names:

TJC 4 - 11000/√3//110/√3/110/3

Material type:

Installations and systems

Material subtype:

Electrification components and systems

Environmental & technical characteristics

Global warming potential (A1-A3):

166 kg CO2e/unit

Technical specification:

220x148x338 mm, 23.7 kg/unit

Available units for calculation:

unit, kg, ton

Unique identifier (OCLID):

63a72bcf2399f32e27d94629

Sustainability data background information

EPD number:

NEPD-3921-2880-EN

EPD program:

EPD Norge

Publication year:

2022

Product category rules (PCR):

Core PCR: EPDItaly007 – PCR for Electronic and Electrical Products and Systems, Rev. 2, 2020/01/21. Sub PCR: EPDItaly015 - Electronic and electrical products and systems – Switches, Rev. 0, 2020/03/16.

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
