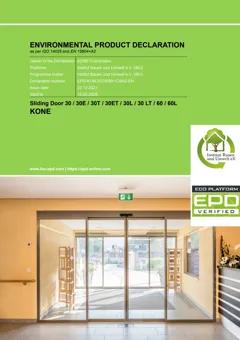

EPD: Sliding doors without drive control, 252.73 kg/unit, Sliding Door 30 / 30E / 30T / 30ET / 30L / 30 LT / 60 (KONE)

The sliding door systems 30 and 60 comprise a sliding door operator including sensors and control unit. The sliding doors can be opened on one or two sides and configured with or without side screens. Thanks to the low profile width, the automatic sliding door systems 30 and 60 are extremely versatile and allow plenty of light penetration. With various designs, the siliding doors are the perfect solution for sophisticated projects. To meet all requirements the systems can be combined with different operator versions. For placing the sliding door systems on the market the following legal provisions apply: • EN 16005 • High stability and torsional rigidity • Low k-value of frame due to double glazing • Excellent insulation features thanks to interlocking side seals and top and bottom seals • Flexible and adaptable to project requirements Performance data of the product with respect to its characteristics in accordance with the relevant technical provision which can be applied are mentioned above. Base materials/Ancillary materials The major material composition including the packaging of the product is listed below. Name Value Unit Glass 79 %

Manufacturer legal entity:
KONE
Manufacturer:
Country of manufacturer:
germany country flaggermany
Product name:
Sliding doors without drive control
Commercial names:
Sliding Door 30 / 30E / 30T / 30ET / 30L / 30 LT / 60
Material type:
Doors, windows and partitioning systems
Material subtype:
Glass doors
Type:
glassDoors

Environmental & technical characteristics

Global warming potential (A1-A3):
452 kg CO2e/unit
Technical specification:
252.73 kg/unit
Available units for calculation:
unit, kg, ton
Unique identifier (OCLID):
67378b84780de16ea5fdc40b

Sustainability data background information

EPD number:
EPD-KON-20230581-CBA2-EN
EPD program:
IBU
Publication year:
2023
Product category rules (PCR):
PCR Automatic doors, automatic gates, and revolving door systems,01.08.2021
Environmental standard:
EN15804+A2
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
GaBi
