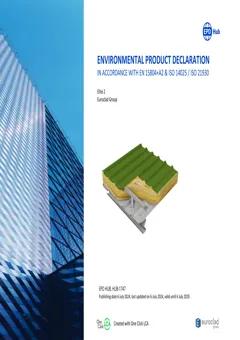

Manufacturer page.EPD: Steel roof cladding system with quilt insulation, L=0.040 W/mK, 260 mm, 17.147 kg/m2, Lambda=0.04 W/(m.K), Elite 2 (Euroclad Group)
The Elite 2 Range comprises external roof systems that can be specified down to a finished minimum roof pitch of 4°. All system variations feature the EC 32-167-1000 Roof external steel profile, the Quattro Spacer System and quilt insulation. Elite 2 is specified with a non-perforated EC 32-200- 1000 Liner MW5 internal steel profile. Elite 2 AC2 is used for projects with a focus on sound absorption, and as such features a perforated 32-200- 1000 Liner MW5 profile and acoustic insulation batts. 0.7mm EC 32-167-1000 Roof external steel sheet 0.7mm EC 32-200-1000 Liner MW5 internal steel sheet (non-perforated or perforated) Quattro Spacer System featuring Quattro Bar and Quattro Bracket 0.040λ (Lambda) quilt insulation External steel sheet available in a range of coatings and colours External sheet meets BROOF(T4) classification to BS EN 13501-5:2016 by testing or Commission Decision 2000/553/EC Internal steel liner sheet available in white polyester lining Can be installed to a minimum finished system pitch of 4° post-deflection This EPD covers the Elite 2 product (260mm thickness) - see scaling table in annex for additional thickness options.
unitedKingdom, OCLEPD
