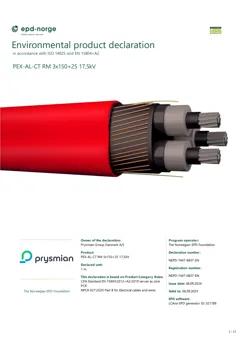

Manufacturer page.EPD: Three-core power cable with aluminum conductor, 3.04 kg/m, PEX-AL-CT RM 3x150+25 17,5kV (Prysmian Group Danmark A/S)
Triple extruded and halogen-free 3-core power supply cable with aluminum conductor and UV-stabilized sheath. Suitable for installation in pipes, directly in the ground or plowed under. With watertight conductor and concentric copper screen. With strippable insulation screen. Product specification Conductor material Aluminium Conductor surface Bare Longitudinal water blocking conductors Yes Inner semi-conducting layer Yes Core insulation material XLPE Outer semi-conducting layer Yes Screen construction Wire screen Screen material Copper, bare Material outer sheath MDPE Cable shape Round Materials kg % Tape - Polyester 0,03 0,94 Plastic - Polyethylene 1,59 52,43 Tape - Nylon 6 0,01 0,48 Metal - Copper 0,20 6,62 Plastic - Polyethylene (MDPE) 0,01 0,26 Fire-, heat- and UV-stabilizers 0,01 0,43 Metal - Aluminium 1,18 38,84 Total 3,04 100,00
