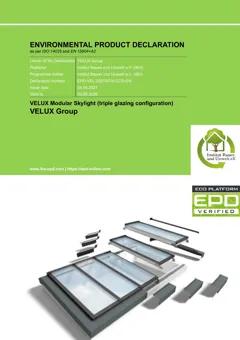

EPD: Triple glazed modular skylight single roof window (VELUX Group)

VELUX Modular Skylights (VMS) are sash_frame constructed single roof windows. The modules fit together and can be configured in several predefined daylight solutions. All individual skylights are delivered as prefabricated modules with dedicated factory finished flashings to ensure watertightness in every solution. The VMS include modules, which can be opened (venting) as well as modules, which cannot be opened (fixed). The EPD covers VMS modules in sizes from 0.405 m2 up to 2.3 m2. The glass panes are with triple glazing and different glass configurations are covered by the EPD. The glass thickness ranges from 18 to 22 mm. Some glass panes have cavities filled with Argon gas others with Krypton. The representative glass configuration used for the EPD calculations has 8 mm toughened glass, 12 mm space, 4 mm toughened glass, 12 mm space and 10 mm laminated glass. This configuration is conservative with regards to the environmental impact results. For the placing on the market of the product in the European Union/European Free Trade Association (EU/EFTA) (with the exception of Switzerland) Regulation (EU) No. 305/2011 (CPR) applies. The product needs a declaration of performance taking into consideration EN 14351_1:2006+A2:2016, Windows and doors _ Product standard, performance characteristics _ Part 1:

Manufacturer legal entity:
VELUX Group
Manufacturer:
Country of manufacturer:
denmark country flagdenmark
Product name:
Triple glazed modular skylight single roof window
Material type:
Doors, windows and partitioning systems
Material subtype:
PVC frame windows

Environmental & technical characteristics

Global warming potential (A1-A3):
196 kg CO2e/m2
Available units for calculation:
m2
Unique identifier (OCLID):
66ec276e12c9c468051750e4

Sustainability data background information

EPD number:
EPD-VEL-20210076-CCI3-EN
EPD program:
IBU
Publication year:
2021
Product category rules (PCR):
PCR Windows and doors , 01.08.2021
Environmental standard:
EN15804+A2
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
GaBi
