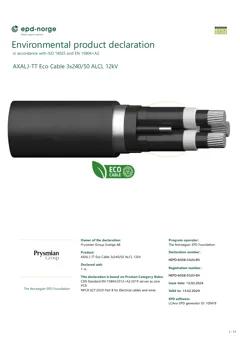

EPD: Water sealed three-core power cable with aluminium conductor, 3.7 kg/unit, AXAL J-TT Eco Cable 3x240/50 ALCL 12kV (Prysmian Group Sverige AB)

Totally water sealed three core power cable. The cable is primarily designed for ploughing down in ground, but thanks to its robust design can handle the stresses from installation in shallow lakes with limited currents. Radially water sealed by an aluminium laminate bonded to the outer sheath and longitudinally water sealed with swellable tapes. The screen is made up of circular corrosion protected aluminium wires that are covered with a semi-conductive. By using the two strong ripcords stripping of the jacket becomes easier and safer for both man and cable.

Manufacturer legal entity:

Prysmian Group Sverige AB

Manufacturer:

Prysmian

Country of manufacturer:

sweden

Product name:

Water sealed three-core power cable with aluminium conductor

Commercial names:

AXAL J-TT Eco Cable 3x240/50 ALCL 12kV

Material type:

Installations and systems

Material subtype:

Cables

Environmental & technical characteristics

Global warming potential (A1-A3):

0.0460 kg CO2e/m

Technical specification:

3.7 kg/unit

Available units for calculation:

m, kg, ton

Unique identifier (OCLID):

65eeb3ec830b4506a6d4bad4

Sustainability data background information

EPD number:

NEPD-6058-5320-EN

EPD program:

EPD Norge

Publication year:

2024

Product category rules (PCR):

NPCR 027:2020 Part B for Electrical cables and wires

Environmental standard:

EN15804+A2

Verification status:

Internally verified

Upstream database:

ecoinvent
