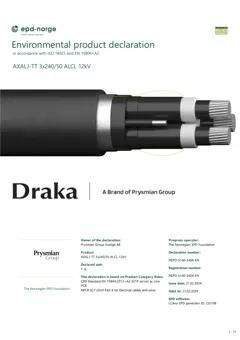

EPD: Water sealed three-core power cable with aluminium conductor, 3.68 kg/m, axalj-tt 3x240/50 alcl 12kv (Prysmian Group Sverige AB)
Totally water sealed three core power cable. The cable is primarily designed for ploughing down in ground, but thanks to its robust design can handle the stresses from installation in shallow lakes with limited currents. Radially water sealed by an aluminium laminate bonded to the outer sheath and longitudinally water sealed with swellable tapes. The screen is made up of circular corrosion protected aluminium wires that are covered with a semi-conductive. By using the two strong ripcords stripping of the jacket becomes easier and safer for both man and cable. Product specification Conductor design Stranded, round, compacted aluminum class 2, longitudinal water sealed Conductor material Aluminium Inner semi-conducting layer Yes Core insulation material XLPE Outer semi-conducting layer Yes Screen construction Metal tape and wire Material outer sheath MDPE Laminated sheath Yes Longitudinal water blocking screen Yes Rip cord Yes UV resistant Yes Materials kg % Adhesive 0,00 0,04 Metal - Aluminium 2,11 57,38 Plastic - Polyethylene 0,95 25,81 Plastic - Polyethylene (MDPE) 0,56 15,12 Tape 0,06 1,64 Total 3,68
