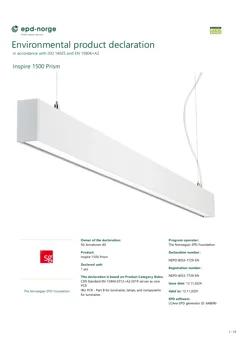

EPD: Wire suspended LED luminaire, 3.18 kg/unit, Inspire 1500 Prism (SG Armaturen AS)

Inspire Prism has a slim, modern design with powder-coated white or black outer surface. Direct light with prismatic, glare-free optics made of PMMA, combined with indirect light with a wide beam angle, gives an efficient light perfectly suited for offices and above desks. 2,5m cable and wireset for ceiling/T-profile fixing is included. Different control options are available; phase cut, pull-dim, Dali or SG Connect. If you want to position several luminaires in a row, the luminaires can easily be connected together with the supplied coupling piece or the flexible corner (accessory). Wattage: 35W. Voltage: 220-240V. Luminous flux: 4800lm. Efficacy: 137 lm/W. Colour temperature: 3000K. Colour rendering (CRI): Ra>80. MacAdams factor: SDCM: 3. Lifetime: L90/B10>100,000, L96>50,000. Light distribution: Direct/Indirect. Optic: Prism Optic. Control/Dimming type: Dim 1x pull switch. Luminaire class: Class I. IP Class: IP20. Contains light source of energy class: D. Housing: Aluminium. Optics: Polycarbonat (PC). Length (mm): 1465. Width (mm): 38. Height (mm): 67. EAN: 7021982128608. The EPD also covers the following products: EAN:7021982128615 INSPIRE 1500 WHITE PRISMATISK 3000K DALI EAN:7021982128622 INSPIRE 1500 BLACK PRISMATISK 3000K DIM 1X PULL SWITCH EAN:7021982128639 INSPIRE 1500 BLACK PRISMATISK 3000K DALI EAN:7021982128646 INSPIRE 1500 WHITE PRISMATISK 4000K DIM 1X PULL SWITCH EAN:7021982128653 INSPIRE 1500 WHITE PRISMATISK 4000K DALI EAN:7021982128660 INSPIRE 1500 BLACK PRISMATISK 4000K DIM 1X PULL SWITCH EAN:7021982128677 INSPIRE 1500 BLACK PRISMATISK 4000K DALI EAN:7021982128684 INSPIRE 1500 WHITE PRISMATISK 3000K EAN:7021982128707 INSPIRE 1500 BLACK PRISMATISK 3000K EAN:7021982128721 INSPIRE 1500 WHITE PRISMATISK 4000K EAN:7021982128745 INSPIRE 1500 BLACK PRISMATISK 4000K Please note that the above has been calculated with the Norwegian energy-mix. If you want an EPD with a specific energy-mix, please send us a request.

Manufacturer legal entity:
SG Armaturen AS
Manufacturer:
Country of manufacturer:
china country flagchina
Product name:
Wire suspended LED luminaire
Commercial names:
Inspire 1500 Prism
Material type:
Installations and systems
Material subtype:
Lighting
Type:
lightingGeneral

Environmental & technical characteristics

Global warming potential (A1-A3):
54.7 kg CO2e/unit
Technical specification:
3.18 kg/unit
Available units for calculation:
unit, kg, ton
Unique identifier (OCLID):
678a9e6e4bdfaa6b2839b166

Sustainability data background information

EPD number:
NEPD-8053-7729-EN
EPD program:
EPD Norge
Publication year:
2024
Product category rules (PCR):
IBU PCR - Part B for luminaires, lamps, and components for luminaires
Environmental standard:
EN15804+A2
Data source:
EPD Inspire 1500 Prism
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
ecoinvent
