EPD: Wooden framed triple glazed balcony doors with aluminium cladding, per m2, 1230 x 2180 mm, U-value = 1.09 W/m2K, 32.05 kg/m2, IKUD-AL (Elitfönster AB)

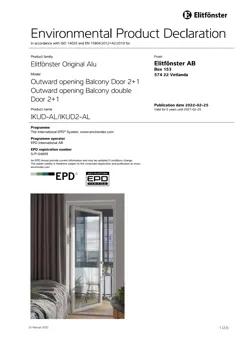

An outward opening connected wooden balcony door with filling and external aluminum cladding. The doors casement consists of two connected sashes, the inner sash consists of wood with a mounted insulated glass with two glass planes and a filling. The outer sash consists of aluminum with a float glass and a filling. The balcony doors casement is hung via hinges on the side piece and opens outward. The weight of the finished balcony door 2+1 is 32,05 kg per m². According to the Construction Products Regulation CPR (EU) no. 305/2011, the essential properties of products must be declared in the CE marking and Declaration of Performance. The technical properties of the window are reported in the following Declaration of performance, which can be accessed on Elitfönster’s website. DoP nr 61-29-CE1030501 A picture of Outward opening Balcony Door 2+1 –IKUD-AL can be seen to the right

Manufacturer legal entity:

Elitfönster AB

Manufacturer:

Elitfönster

Country of manufacturer:

sweden

Product name:

Wooden framed triple glazed balcony doors with aluminium cladding, per m2

Commercial names:

IKUD-AL

Material type:

Doors, windows and partitioning systems

Material subtype:

Wood-framed glass doors

Environmental & technical characteristics

Global warming potential (A1-A3):

50.7 kg CO2e/m2

Technical specification:

1230 x 2180 mm, U-value = 1.09 W/m2K, 32.05 kg/m2

Available units for calculation:

m2, kg, ton

Unique identifier (OCLID):

625d3caad5b86b31352bb218

Sustainability data background information

EPD number:

S-P-04899

EPD program:

International EPD System

Publication year:

2022

Product category rules (PCR):

PCR: Construction products and construction services. Version 1.1

Environmental standard:

EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
