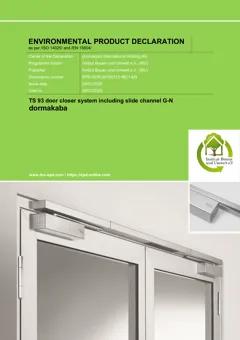

EPD: Door slide channel system, 4.656 kg/unit, TS 93 EN 1-5, ANSI 1-5, EN 2-5, EN 5-7, Basic, 2S (dormakaba International Holding AG)

The TS 93 series comprises a modular system that meets practically every conceivable functional requirement by easily combining the available door closer models and various slide rails. It enables doors to be optimally equipped for a wide range of applications and in a wide variety of designs. The backcheck feature ensures the safe deceleration and restraint of a door which has been flung open or caught by a gust of wind. This effectively reduces the risk of the door and wall being damaged. The strongly decreasing opening torque makes it easy to enter the door, slowing the closing cycle between 120° and 70° (approx. values for pull-side door leaf fixing). The standard closing delay enables, for example, greater accessibility and easy transport of objects, which is ideal for people with luggage, hospital beds, etc.

Manufacturer legal entity:

dormakaba International Holding AG

Manufacturer:

dormakaba

Country of manufacturer:

singapore

Product name:

Door slide channel system

Commercial names:

TS 93 EN 1-5, ANSI 1-5, EN 2-5, EN 5-7, Basic, 2S

Material type:

Doors, windows and partitioning systems

Material subtype:

Door and window parts

Environmental & technical characteristics

Global warming potential (A1-A3):

13 kg CO2e/unit

Technical specification:

4.656 kg/unit

Available units for calculation:

unit, kg, ton

Unique identifier (OCLID):

5e65e5d935fae57d2eb5e7a9

Sustainability data background information

EPD number:

EPD-DOR-20190173-IBC1-EN

EPD program:

IBU

Publication year:

2020

Product category rules (PCR):

PCR Building Hardware products, 02/2016

Environmental standard:

EN15804+A1

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

GaBi
