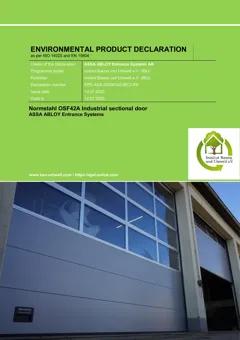

EPD: Industrial overhead sectional door, 143.38 kg/unit, Normstahl OSF42A (ASSA ABLOY)
Product name: Normstahl OSF42A overhead sectional door. The Normstahl OSF42A overhead sectional door is suitable for all types of buildings, with regard to both function and appearance. High flexibility makes it possible to install this door in almost every type of building. The high light admission allows working environments with maximum lighting. The door slides up under the roof when opened, allowing free space around the door opening and leaving the door opening completely free. The door is made of aluminum tubular profiles, filled with sandwich panels or acrylic windows (window types: DAS (Double glazed scratch resistant Acrylic (SAN with coating)), Single sealed/DSS (Double glazed Acrylic (SAN)), Single sealed/DAD (Double glazed scratch resistant Acrylic (SAN with coating)), Double sealed/DSD (Double glazed Acrylic (SAN)), Double sealed/TAD (Triple glazed, double sealed, 3 x 2.8mm, outer & inner sheet SAN scratch_resistance coating)/TSD (Triple glazed, double sealed, 3 x 2.8mm, SAN (without scratch_resistance coating)/SA3: Single pane of scratch resistant Acrylic (SAN with coating)) 2.8 mm/SS3: Single pane of Acrylic (SAN) 2.8 mm/SH4: Single hardened glass 4 mm. The panels are designed without thermal bridge to provide minimal thermal transmittance, which reduces energy cost (in case the space is conditioned). The surface is made of waffled steel. The panel hasintegrated finger pinch protection. There is top, bottom and side seals and seals between door sections. The standard track system is made of galvanized steel. The balancing system balances the door by applying a force nearly equal to the weight of the door leaf. This allows the door leaf to be moved up and down, and to stay open in any position. The balancing system (torsion spring system or weight balancing system) supports heavy forces. In case of a spring or cable break, its counterforce is lost. The door is therefore equipped with two safety devices that can block downward door movement; Spring Break Device (standard) and Cable Break Device (option, not declared in this EPD). The door has 4 primary parts: 1) Door leaf 2) Track set 3) Balancing system 4) Operating system/chain hoist (optional) The Normstahl OSF42A overhead sectional door has been designed to meet all operational and safety requirements in the European Directives and the standards issued by the European Standardization Committee (CEN). For the placing on the market in the EEA, Switzerland and Turkey the Construction Products Regulation (EU) No 305/2011 applies. The products need a Declaration of Performance and CE marking under consideration of the Construction Products Regulation and the harmonized standard EN 13241:2003+A2:2016 Industrial, commercial and garage doors and gates — Product standard — Part 1: Products without fire resistance or smoke control characteristics. Further standards that can be applied for sectional doors are: Wind load: EN12424 Class 3 (≤ 4250 mm DLW) Class 2(> 4250 mm DLW) (Higher classes on request) Thermal transmittance: EN12428 2.3 W/(m².K) TAD/TSD (5000 x 5000 mm) 3.35 W/(m².K) DAD/DSD (5000 x 5000 mm) 5.2 W/(m².K) SA3/SS3 (5000 x 5000 mm) Water penetration: EN12425 Class 3 (Door surface 4000 x 3310 mm) (no passdoor) Air permeability: EN12426 Class 3 (4000 x 3310 mm without passdoor) Class 2 (4000 x 3310 mm with passdoor) Acoustic insulation: EN ISO 10140_2 R _ 24 dB (door surface 4210 x 2590mm) The electrical unit as identified is in compliance with the following directives: 2006/42/EC Machinery Directive (MD) 2014/30/EU Electromagnetic Compatibility Directive (EMCD) 2011/65/EU RoHS Harmonized European standards, which have been applied: EN 60335_1 Household and similar electrical appliances _Safety _Part 1: General requirements EN 61000_6_2 Electromagnetic compatibility (EMC) _ Part 6_2: Generic standards _ Immunity for industrial environments EN 61000_6_3 Electromagnetic compatibility (EMC) —Part 6_3: Generic standards — Emission standard for residential, commercial and light_industrial environments EN ISO 13849_1 Safety of machinery — Safety_related parts of control systems — Part 1: General principles for design Disposal of the product is subject to the WEEE Directive within Europe, Directive 2012/19/EU Other standards or technical specifications, which have been applied: EN 60335_2_103 Household and similar electrical appliances _Safety _Part 2: Particular requirements for drives for gates, doors and windows. For the application and use the respective national provisions apply.
