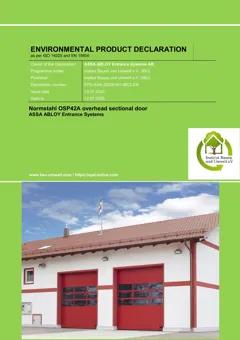

EPD: Overhead sectional door, 197.16 kg/unit, Normstahl OSP42A (ASSA ABLOY)
Product name: Normstahl OSP42A overhead sectional door The Normstahl OSP42A overhead sectional door is suitable for all types of buildings, with regard to both function and appearance. High flexibility makes it possible to install this door in almost every type of building. The door slides up under the roof when opened, allowing free space around the door opening and leaving the door opening completely free. The door is made of insulated panels. The panels are designed without thermal bridge to provide minimal thermal transmittance, which reduces energy cost (in case the space is conditioned). The surface is made of waffled steel or aluminum. The panel has integrated finger pinch protection. There is top, bottom and side seals and seals between door sections. The standard track system is made of galvanized steel. The balancing system balances the door by applying a force nearly equal to the weight of the door leaf. This allows the door leaf to be moved up and down, and to stay open in any position. The balancing system (torsion spring system or weight balancing system to keep the door in balance) supports heavy forces. In case of a spring or cable break, its counterforce is lost. The door is therefore equipped with two safety devices that can block downward door movement; Spring Break Device (standard) and Cable Break Device (option, not declared in this EPD). The door has 4 primary parts: 1) Door leaf 2) Track set 3) Balancing system 4) Operating system/chainhoist (optional). The Normstahl OSP42A overhead sectional door has been designed to meet all operational and safety requirements in the European Directives and the standards issued by the European Standardization Committee (CEN). (standard) and Cable Break Device (option, notdeclared in this EPD). For the placing on the market in the EEA, Switzerland and Turkey the Construction Products Regulation (EU) No 305/2011 applies. The products need a Declaration of Performance and CE marking under consideration of the Construction Products Regulation and the harmonized standard EN 13241:2003+A2:2016 Industrial, commercial and garage doors and gates — Product standard — Part 1: Products without fire resistance or smoke control characteristics. Further standards that can be applied for sectional doors are: Wind load: EN12424 Class 3 (≤ 4250 mm DLW) Class 2(> 4250 mm DLW) (Higher classes on request) Thermal transmittance: EN12428 1.0 W/(m².K) Steel door (Door surface 5000 x 5000 mm) 1.70 W/(m².K) Steel door with windows/passdoor (4000 x 3840 mm) Water penetration: EN12425 Class 3 (Door surface 4000 x 3310 mm) Air permeability: EN12426 Class 3 (Door surface 4000 x 3310 mm) Acoustic insulation: EN ISO 10140-2 R=25 dB (Door surface 2590 x 4210 mm) The electrical unit as identified is in compliance with the following directives: 2006/42/EC Machinery Directive (MD) 2014/30/EU Electromagnetic Compatibility Directive (EMCD) 2011/65/EU RoHS Harmonized European standards, which have been applied: EN 60335-1 Household and similar electrical appliances -Safety -Part 1: General requirements EN 61000-6-2 Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments EN 61000-6-3 Electromagnetic compatibility (EMC) — Part 6-3: Generic standards — Emission standard for residential, commercial and light-industrial environments EN ISO 13849-1 Safety of machinery — Safety-related parts of control systems — Part 1: General principles for design Disposal of the product is subject to the WEEE Directive within Europe, Directive 2012/19/EU
netherlands
