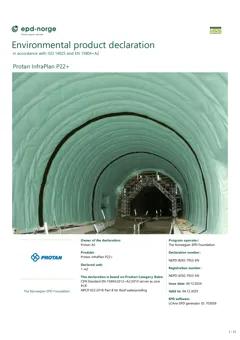

EPD: Plasticized PVC waterproofing membrane for waterproofing tunnels, underground structures, 3.03 kg/m2, InfraPlan P22+ (Protan AS)

Protan InfraPlan P22+ is a homogeneous, flexible waterproofing membrane made of plasticized PVC. The product is black with a light-colored signal layer. Protan InfraPlan is designed for functionality and versatility and can be used for waterproofing tunnels, underground structures, as well as horizontal and vertical sealing of basement foundations not exposed to sunlight. Product specification Protan InfraPlan P22+ is produced at the manufacturing plant P3 of Protan. Complies with EN 13967 and EN 13491, meeting all standard requirements. Approved as a Type II membrane according to the Norwegian Public Roads Administration Handbooks N500 and R510. Homogeneous material with a signal layer. Not compatible with bitumen and must be protected from UV exposure. The membrane is recyclable. Materials kg % Emissions and waste streams 0,10 3,30 Fillers 0,22 7,29 Fire-, heat- and UV-stabilizers 0,07 2,37 Pigments 0,05 1,52 Plasticizer 0,97 32,11 S-PVC 1,62 53,41 Total 3,03 100,00 Packaging kg % Packaging 0,03 100,00 Total incl. packaging 3,07 100,00

Manufacturer legal entity:
Protan AS
Manufacturer:
Country of manufacturer:
norway country flagnorway
Product name:
Plasticized PVC waterproofing membrane for waterproofing tunnels, underground structures
Commercial names:
InfraPlan P22+
Material type:
Plastics, membranes and roofing
Material subtype:
Plastic membranes
Type:
membranesPvcOrWaterproofing

Environmental & technical characteristics

Global warming potential (A1-A3):
6.69 kg CO2e/m²
Technical specification:
3.03 kg/m²
Available units for calculation:
m², kg, ton
Unique identifier (OCLID):
679d1fda2bfe6974dabb956f

Sustainability data background information

EPD number:
NEPD-8292-7953-EN
EPD program:
EPD Norge
Publication year:
2024
Product category rules (PCR):
CEN Standard EN 15804:2012+A2:2019 serves as core PCR NPCR 022:2018 Part B for Roof waterproofing
Environmental standard:
EN15804+A2
Data source:
EPD Protan InfraPlan P22+
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
ecoinvent
