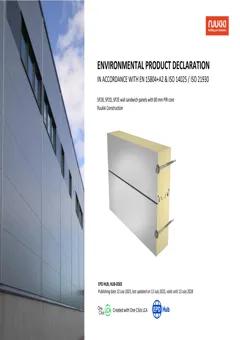

EPD: Sandwich panel with PIR core and double steel siding, R = 3.7 m2K/W, 80 mm, 11.01 kg/m2, SP2B, SP2D and SP2E (Ruukki Construction)

These SP2B, SP2D and SP2E sandwich panels consist of polyisocyanurate foam (PIR) insulating core bonded between two colour-coated steel sheets. The sandwich panels are used for structural purposes for external walls, internal walls and ceilings. SP2B, SP2D and SP2E sandwich panels with PIR core are available in thicknesses ranging from 40 to 200 mm. This EPD applies to SP2B, SP2D and SP2E panels with 80 mm thick PIR insulation core. Our selection of sandwich panels also includes Energy panels with extremely low air leakage rates. The term Energy refers to airtight energy efficient panel structures that is guaranteed by joint tightness and special tolerances in production. We also offer Patina sandwich panels that have an external facing made of natural and untreated Cor-Ten® steel.

Manufacturer legal entity:

Ruukki Construction

Manufacturer:

Ruukki

Country of manufacturer:

poland, OCLEPD

Product name:

Sandwich panel with PIR core and double steel siding

Commercial names:

SP2B, SP2D and SP2E

Material type:

Steel and other metals

Material subtype:

Sandwich panels, metal

Environmental & technical characteristics

Global warming potential (A1-A3):

29.5 kg CO2e/m2

Technical specification:

R = 3.7 m2K/W, 80 mm, 11.01 kg/m2

Available units for calculation:

m2, kg, ton, m3

Unique identifier (OCLID):

64e241416200d44a17220dab

Sustainability data background information

EPD number:

HUB-0583

EPD program:

EPD Hub

Publication year:

2023

Product category rules (PCR):

EPD Hub Core PCR version 1.0, 1 Feb 2022 EN 16757 Product Category Rules for concrete and concrete elements

Environmental standard:

EN15804+A1, EN15804+A2

Verification status:

Third-party verified (as per ISO 14025)

Upstream database:

ecoinvent
