EPD: Self-locking emergency escape locks, 0.99 kg/unit, Solenoid Locks SVx 6000 (dormakaba)

Self-locking emergency escape locks automatically lock doors after each closing whether mechanically or motor-controlled. The emergency escape function allows the door to be opened at any time in the exit direction by simply operating the lever handle. Mechanical opening from the outside remains possible at any time by unlocking the profile cylinder insert. SVP 6000 microswitch-monitored emergency-escape lock with automatic locking action and with divided follower, mechanical sequential control and signalling through integrated monitoring contact, automatically locks the doors after each closing cycle. The automatic deadbolt throw of 20 mm ensures that the door is always locked in accordance with property insurance requirements. Meanwhile, thanks to the added one-sided emergency escape function, the door can be opened at any time in the exit direction by simply operating the lever handle or it can be opened from the outside through a key or engageable external lever. SVP 6000 • An electrically-monitored panic lock with a split follower Name Supply voltage Temperature range Relative humidity up to 95% Protection category Rear backset Distance between door handle and locking cylinder (for profile cylinder) Distance between door handle and locking cylinder (for round cylinder) Bolt throw Performance data of the product with respect to its Base materials/Ancillary materials

Manufacturer legal entity:
dormakaba
Manufacturer:
Country of manufacturer:
germany country flaggermany
Product name:
Self-locking emergency escape locks
Commercial names:
Solenoid Locks SVx 6000
Material type:
Doors, windows and partitioning systems
Material subtype:
Door and window parts
Type:
doorWindowPartsLocks

Environmental & technical characteristics

Global warming potential (A1-A3):
6.98 kg CO2e/unit
Technical specification:
0.99 kg/unit
Available units for calculation:
unit, kg, ton
Unique identifier (OCLID):
6781619c15da0a668fdb1e52

Sustainability data background information

EPD number:
EPD-DOR-20240263-CBA1-EN
EPD program:
IBU
Publication year:
2024
Product category rules (PCR):
PCR Building Hardware products, 01.08.2021
Environmental standard:
EN15804+A2
Data source:

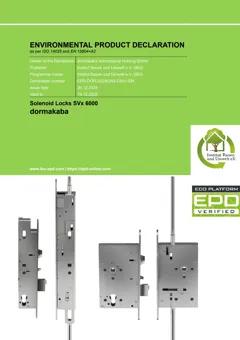

EPD Solenoid Locks SVx 6000
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
GaBi
