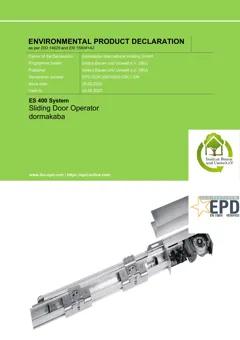

EPD: Sliding door operator, 16.6 kg/unit, ES 400 System (dormakaba)

As a compact and innovative sliding door operator, the ES 400 is especially suitable for application in hospitals, institutes or laboratories. Thanks to its simple and lowmaintenance design, it guarantees easy handling and reliable function as well as a long life cycle. The ES 410 effortlessly operates singlepanel doors with a weight of up to 200 kg at a passage width of up to 3 m, while the ES 420 is especially suitable for doublepanel doors with a doorpanel weight of up to 2x125 kg. Features • Compact design • Excellent operating dynamics • Applicable for heavy doors in stainless steel design • Selflearning • Parameterisation via software • Push & Go function • Separate input for control via fire detection system • Integrated airlock function for up to 3 door sets • Automatic changeover to manual closing For the placing on the market in the European Union/European Free Trade Associaton (EU/EFTA) (with the exception of Switzerland) the following legal provisions apply:  DIN 18650:2010  DIN EN 16005: 2012  DIN EN 60335_1, _2_103: 2007  DIN EN 61000_1_2:2017  DIN EN ISO 13849_1: 2016  DIN EN 61508_2: 2011  2011/65/EU ROHS3 Directive The CEmarking takes into account the proof of conformity with the respective harmonized standards based on the legal provisions above.

Manufacturer legal entity:
dormakaba
Manufacturer:
Country of manufacturer:
germany country flaggermany
Product name:
Sliding door operator
Commercial names:
ES 400 System
Material type:
Doors, windows and partitioning systems
Material subtype:
Door and window parts

Environmental & technical characteristics

Global warming potential (A1-A3):
48.7 kg CO2e/unit
Technical specification:
16.6 kg/unit
Available units for calculation:
unit, kg, ton
Unique identifier (OCLID):
66d1a4b2acc3ee48ff9064e0

Sustainability data background information

EPD number:
EPD-DOR-20210283-CBC1-EN
EPD program:
IBU
Publication year:
2022
Product category rules (PCR):
PCR category rules: Drive systems for automatic doors and gates, 11.2017
Environmental standard:
EN15804+A2
Verification status:
Third-party verified (as per ISO 14025)
Upstream database:
GaBi
